Description:The M3008204 series is a 8Mbit high performance non-volatile MRAM with speed up to 108MHz. The M3008204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M3008204 supports Quad SPI, SDR and DDR interface. It operates at 3V typical from -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.
The recommended operating temperature range for the M30082040108X0PWAY is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
The clock settings for the M30082040108X0PWAY can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions and examples.
The maximum frequency for the M30082040108X0PWAY's CPU is 240 MHz, as specified in the datasheet. However, the actual operating frequency may vary depending on the system configuration, voltage, and temperature.
The M30082040108X0PWAY offers several low-power modes, including Sleep, Stop, and Deep Standby modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions and examples.
The M30082040108X0PWAY has a maximum of 1 MB of Flash memory and 256 KB of SRAM. Additionally, it has 16 KB of Data Flash memory and 4 KB of Backup SRAM.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M30082040108X0PWAY Overview

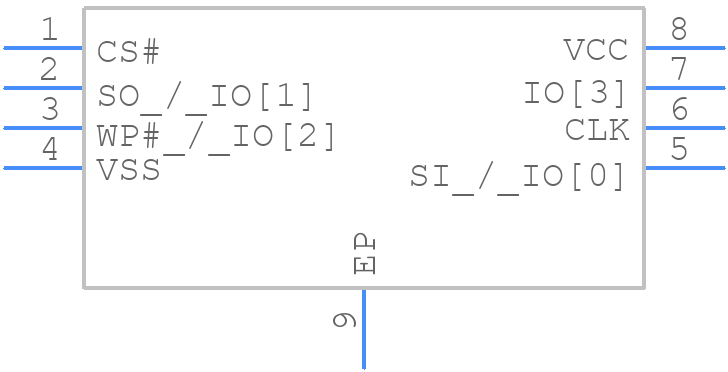

Use the download button to access the M30082040108X0PWAY schematic symbol, PCB footprint, and 3D model.
