M30162040108X0PSAY - Renesas Electronics

Description: The M3016204 series is a 16Mbit high performance non-volatile MRAM with speed up to 108MHz. The M3016204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M3016204 supports Quad SPI, SDR and DDR interface. It operates at 3V typical from -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.

Download M30162040108X0PSAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

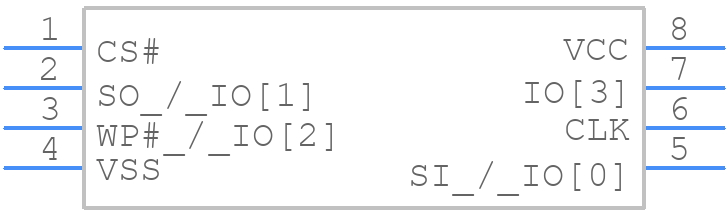

M30162040108X0PSAY - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
M30162040108X0PSAY - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SA: 8-pin SOIC
click to zoom
3D Models
M30162040108X0PSAY - Renesas Electronics - 3D model - Small Outline Packages - SA: 8-pin SOIC
click to zoom

M30162040108X0PSAY Details

  • Manufacturer Part Number:

    M30162040108X0PSAY

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    PWG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

M30162040108X0PSAY Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for M30162040108X0PSAY is 2.7V to 5.5V, as specified in the datasheet.
  • The clock settings for M30162040108X0PSAY can be configured using the Clock Control Register (CCR) and the Clock Source Control Register (CSCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the M30162040108X0PSAY microcontroller is 20 MHz, as specified in the datasheet.
  • The M30162040108X0PSAY microcontroller has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Control Register (PMC) and the Power Mode Control Register (PMCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum current consumption of M30162040108X0PSAY varies depending on the operating frequency and voltage. Refer to the datasheet for the current consumption characteristics.
