M30620FCAFP#U3 - Renesas Electronics

Description: The M16C/62A, M16C/62M Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download M30620FCAFP#U3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30620FCAFP#U3 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

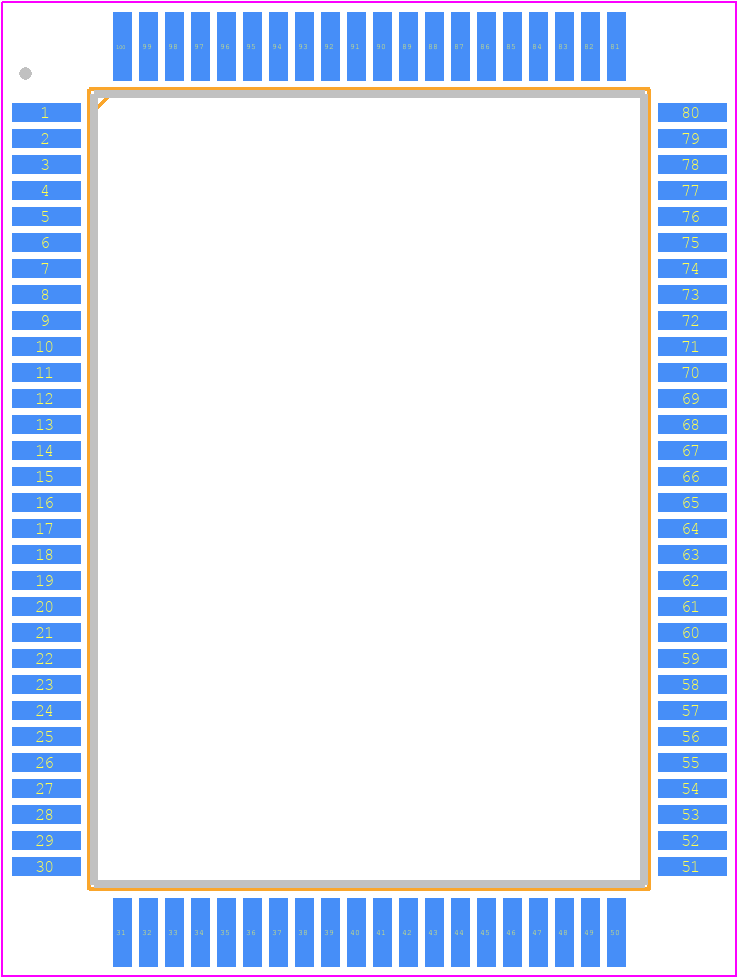

M30620FCAFP#U3 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100JB-A
click to zoom
3D Models
M30620FCAFP#U3 - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0100JB-A
click to zoom

M30620FCAFP#U3 Details

  • Manufacturer Part Number:

    M30620FCAFP#U3

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100JB

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30620FCAFP#U3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M30620FCAFP#U3 is -40°C to +85°C, but it can operate up to +125°C with some limitations.
  • The clock settings for the M30620FCAFP#U3 can be configured using the Clock Generator (CG) module, which allows for selection of clock sources, division, and multiplication. Refer to the user manual for detailed configuration options.
  • The maximum current consumption of the M30620FCAFP#U3 depends on the operating frequency and voltage. At 5V and 20MHz, the maximum current consumption is approximately 25mA. Refer to the datasheet for detailed current consumption characteristics.
  • The M30620FCAFP#U3 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be entered using software commands and can reduce power consumption to as low as 1μA. Refer to the user manual for detailed instructions.
  • The maximum frequency of the M30620FCAFP#U3 is 32MHz, but it can be overclocked up to 40MHz with some limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M30620FCAFP#U3 Overview

Use the download button to access the M30620FCAFP#U3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3062, or try a keyword search, such as Microcontrollers
