M30624FGAFP#U5 - Renesas Electronics

Description: The M16C/62A, M16C/62M Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download M30624FGAFP#U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M30624FGAFP#U5 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

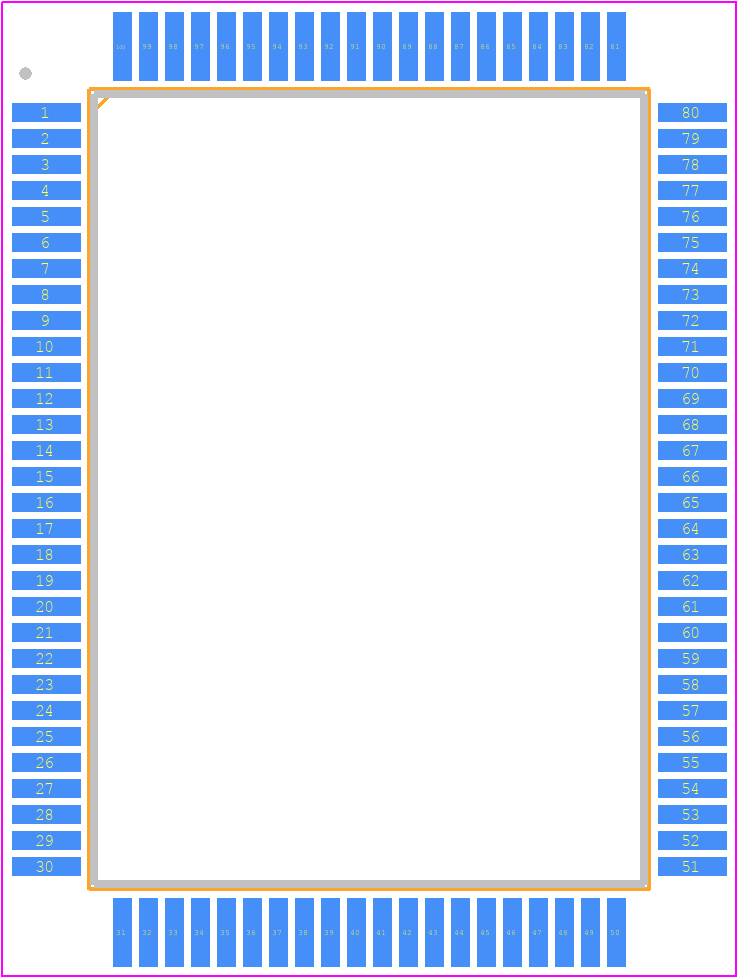

M30624FGAFP#U5 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0100JB-A
click to zoom
3D Models
M30624FGAFP#U5 - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0100JB-A
click to zoom

M30624FGAFP#U5 Details

  • Manufacturer Part Number:

    M30624FGAFP#U5

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100JB

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

M30624FGAFP#U5 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M30624FGAFP#U5 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the M30624FGAFP#U5 can be configured using the Clock Generator (CG) module. The CG module allows you to select the clock source, divide the clock frequency, and enable or disable the clock output. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the M30624FGAFP#U5 is 24 MHz, which is the maximum operating frequency of the internal clock generator.
  • The M30624FGAFP#U5 has a 10-bit Analog-to-Digital Converter (ADC) with 16 channels. To use the ADC, you need to configure the ADC module, select the analog input channel, set the conversion mode, and start the conversion. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The watchdog timer on the M30624FGAFP#U5 is a safety feature that resets the microcontroller if it fails to respond within a specified time period. This is useful in applications where the microcontroller may hang or freeze due to software or hardware errors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M30624FGAFP#U5 Overview

Use the download button to access the M30624FGAFP#U5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3062, or try a keyword search, such as Microcontrollers
