Description:The M16C/62P Group is supported only for customers who have already adopted these products. The RX130, RX651 Groups are recommended for new designs.
Renesas provides a recommended PCB layout guide in their application note 'M30626SPFP#U3C Thermal Design Guide' (document number: R01CL0005EJ0100). It includes guidelines for thermal vias, heat sink design, and PCB layer stackup.
Renesas provides a Secure Boot and Firmware Encryption Guide (document number: R01CL0006EJ0100) that explains how to use the M30626SPFP#U3C's built-in security features, including the Secure Boot mechanism and firmware encryption using the AES-128 algorithm.
The internal oscillator has a typical frequency accuracy of ±2% at room temperature. To improve accuracy, you can use an external crystal oscillator or a ceramic resonator. Renesas recommends using a high-quality crystal oscillator with a frequency tolerance of ±10 ppm or better.
To optimize power consumption, use the M30626SPFP#U3C's low-power modes, such as Sleep mode, Stop mode, and Hibernate mode. Disable unnecessary peripherals, use clock gating, and adjust the clock frequency to minimize power consumption. Renesas provides a Power Consumption Optimization Guide (document number: R01CL0007EJ0100) for more information.
To minimize EMI and ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Use a multi-layer PCB with a solid ground plane, and consider using EMI filters and shielding components. Renesas provides an EMI and EMC Design Guide (document number: R01CL0008EJ0100) for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M30626SPFP#U3C Overview

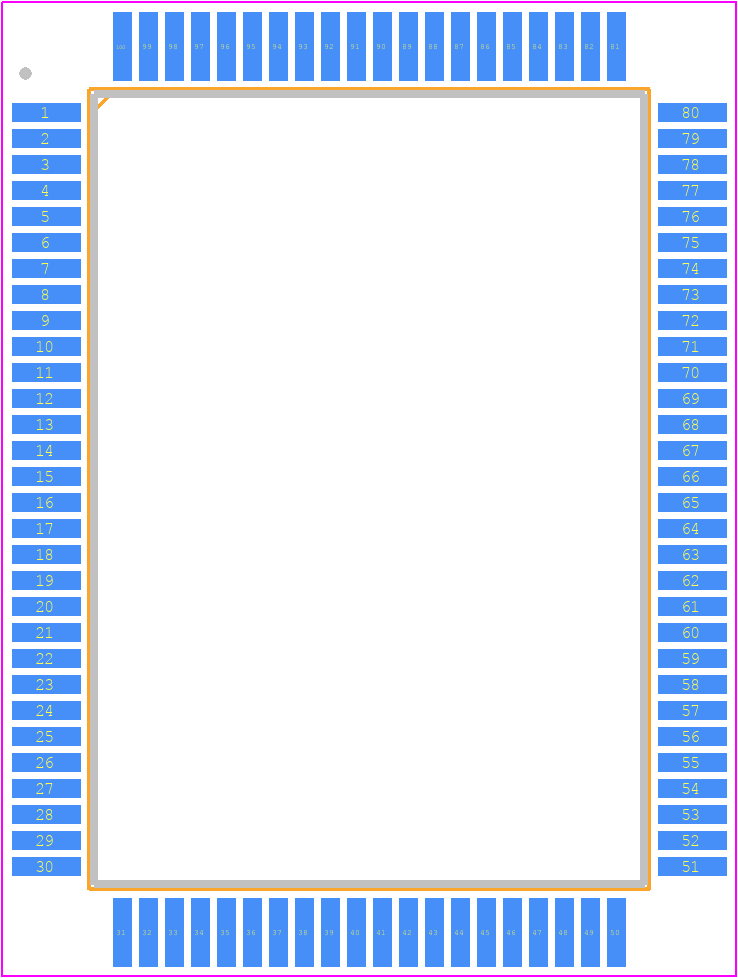

Use the download button to access the M30626SPFP#U3C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M3062,
or try a keyword search, such as Microcontrollers
