M40SZ100WMQ6E - STMicroelectronics

Description: 3 V NVRAM supervisor for LPSRAM Convert low power SRAMs into NVRAMs 3 V operating voltage Precision power monitoring and power switching circuitry Automatic write-protection when VCC is out-oftolerance Choice of supply voltage and power-fail

Download M40SZ100WMQ6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

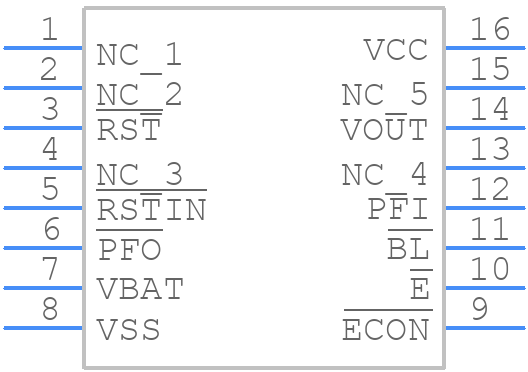

M40SZ100WMQ6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M40SZ100WMQ6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 16 PINS - PLASTIC MICROPACKAGE (SO)-.....
click to zoom
3D Models
M40SZ100WMQ6E - STMicroelectronics - 3D model - Small Outline Packages - 16 PINS - PLASTIC MICROPACKAGE (SO)-.....
click to zoom

M40SZ100WMQ6E Details

  • Manufacturer Part Number:

    M40SZ100WMQ6E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

M40SZ100WMQ6E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for M40SZ100WMQ6E is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 150°C.
  • The power-up sequence for M40SZ100WMQ6E is critical to ensure proper device operation. It's recommended to power up the VDD supply before the VPP supply, and ensure that VDD reaches its minimum specified voltage before applying VPP. A power-up sequence diagram is available in the datasheet.
  • The maximum allowed voltage on the VPP pin is 12.5V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device.
  • A reliable reset circuit for M40SZ100WMQ6E can be implemented using an external resistor and capacitor connected to the RESET pin. The recommended values are R = 1 kΩ and C = 100 nF. This ensures a clean reset signal and prevents unwanted resets during power-up.
  • The NC pins on the M40SZ100WMQ6E package are not connected internally and should be left unconnected in the application circuit. These pins are reserved for future device enhancements or testing purposes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M40SZ100WMQ6E Overview

Use the download button to access the M40SZ100WMQ6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M40SZ, or try a keyword search, such as Power Management Circuits
