- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for M481LIDAE
- Part Number M481LIDAE
- Manufacturer Nuvoton
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP-48 (7x7x1.4mm2 10.1 Footprint 2.0mm)
- Released Date Jan 11, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M481LIDAE Details
-
Manufacturer Part Number:
M481LIDAE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
7
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC
M481LIDAE Frequently Asked Questions (FAQs)
-
The recommended oscillator crystal frequency for the M481LIDAE is 12 MHz, 14.7456 MHz, or 16 MHz, depending on the specific application and clock speed requirements.
-
The PMU can be configured through registers to enable low-power modes such as sleep, idle, and power-down modes. Refer to the Nuvoton application notes and programming guides for specific register settings and configuration examples.
-
The M481LIDAE has an operating temperature range of -40°C to 85°C, making it suitable for industrial and commercial applications.
-
Yes, the M481LIDAE's UART interface can be used for IrDA communication, but it requires additional external circuitry and software implementation to support IrDA protocols.
-
The M481LIDAE has a built-in WDT that can be enabled and configured through registers. The WDT can be used to reset the microcontroller in case of a software or hardware fault.
Trust Checks
Community Provided
System Verified
Community Approved
M481LIDAE Overview

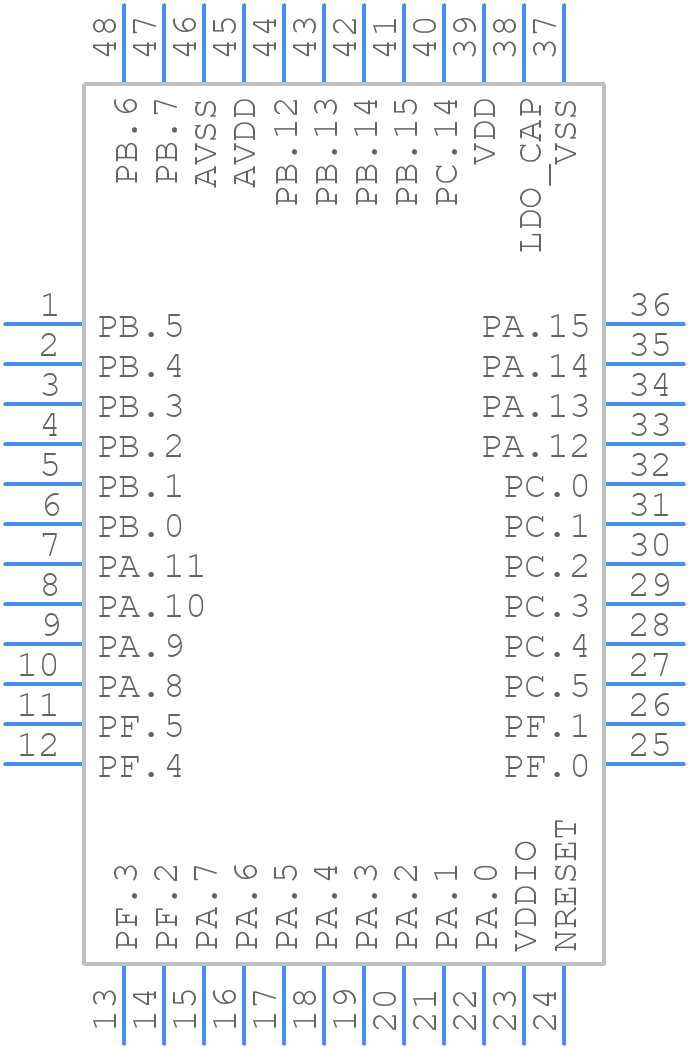

Use the download button to access the M481LIDAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M481L,
or try a keyword search, such as Microcontrollers
