M48T12-70PC1 - STMicroelectronics

Description: STMicroelectronics M48T12-70PC1 Real Time Clock — Timekeeper SRAM, 16kbit RAM 24-Pin PCDIP

Download M48T12-70PC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

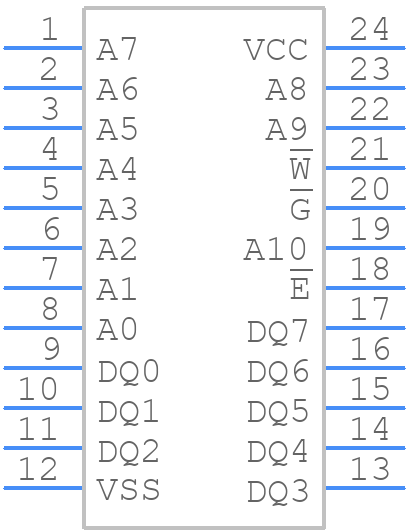

M48T12-70PC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

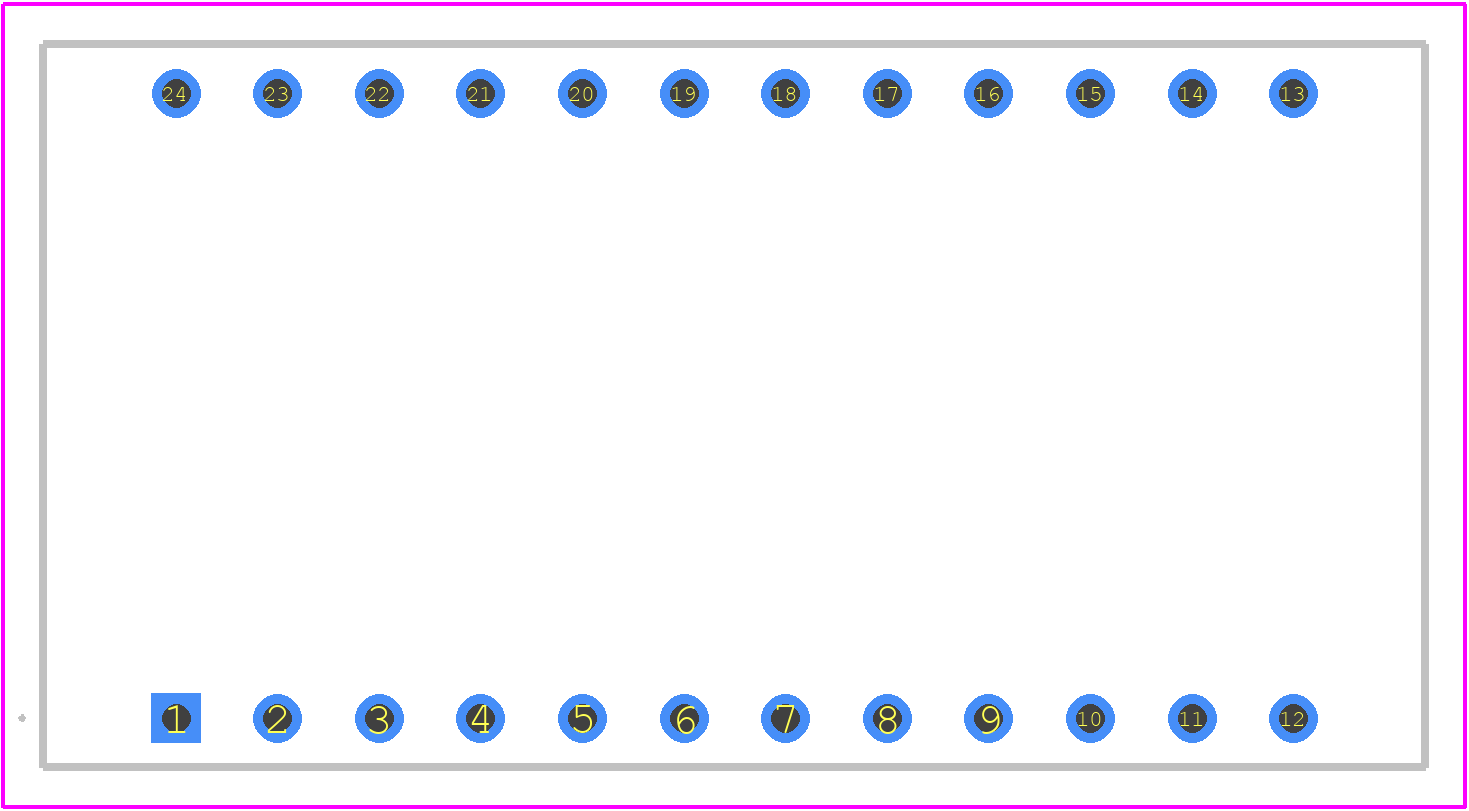

M48T12-70PC1 - STMicroelectronics PCB footprint - Other - Other - PCDIP24 – 24-pin plastic DIP_2022
click to zoom
3D Models
M48T12-70PC1 - STMicroelectronics - 3D model - Other - PCDIP24 – 24-pin plastic DIP_2022
click to zoom

M48T12-70PC1 Details

  • Manufacturer Part Number:

    M48T12-70PC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Memory IC Type:

    STANDARD SRAM

M48T12-70PC1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the M48T12-70PC1 is -40°C to +85°C.
  • To ensure data integrity during power-down or power-up cycles, use the VCC pin to monitor the power supply voltage and ensure that it is within the recommended operating range before accessing the device.
  • The recommended storage condition for the M48T12-70PC1 is in a dry, cool place, away from direct sunlight, with a relative humidity of 60% or less, and at a temperature range of -40°C to +85°C.
  • Yes, the M48T12-70PC1 can operate with a 3.3V power supply, but ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • During soldering and rework, handle the device by the body or the pins, avoiding static-sensitive areas. Use a static-safe workstation and follow proper electrostatic discharge (ESD) precautions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T12-70PC1 Overview

Use the download button to access the M48T12-70PC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T1, or try a keyword search, such as SRAMs
