M48T18-150PC1 - STMicroelectronics

Description: Real Time Clock (RTC) IC Clock/Calendar Parallel 28-DIP Module (0.600", 15.24mm) 4.5V ~ 5.5V 3mA 0°C ~ 70°C

Download M48T18-150PC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

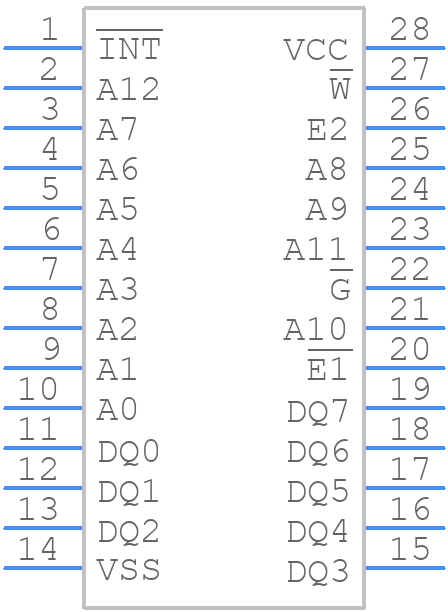

M48T18-150PC1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

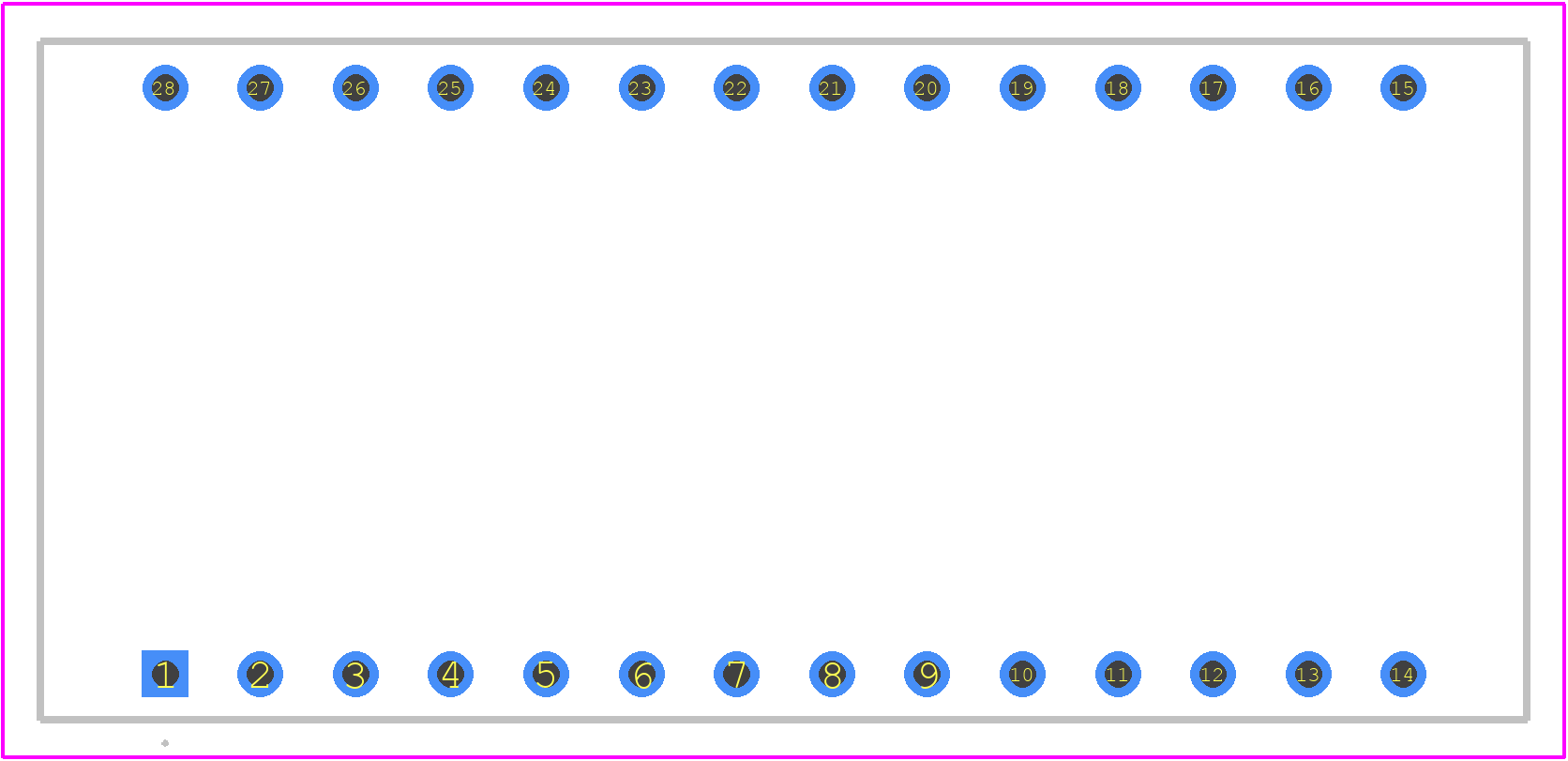

M48T18-150PC1 - STMicroelectronics PCB footprint - Other - Other - PCDIP28_2026-1.6
click to zoom
3D Models
M48T18-150PC1 - STMicroelectronics - 3D model - Other - PCDIP28_2026-1.6
click to zoom

M48T18-150PC1 Details

  • Manufacturer Part Number:

    M48T18-150PC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Memory IC Type:

    STANDARD SRAM

M48T18-150PC1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M48T18-150PC1 is 4.5V to 5.5V.
  • To ensure data integrity, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized and that the oscillator is stable before accessing the memory.
  • The maximum clock frequency supported by the M48T18-150PC1 is 1 MHz.
  • In the event of a battery voltage drop, the device will automatically switch to a low-power mode to conserve energy. However, it is recommended to implement a battery monitoring circuit to detect low battery voltage and take appropriate action, such as shutting down the system or switching to a backup power source.
  • The typical current consumption of the M48T18-150PC1 is 250 μA at 5V and 1 MHz clock frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M48T18-150PC1 Overview

Use the download button to access the M48T18-150PC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T1, or try a keyword search, such as SRAMs
