M48T35AV-10MH6E - STMicroelectronics

Description: Real Time Clock (RTC) IC Clock/Calendar Parallel 28-SOP (0.350", 8.89mm Width) with SNAPHAT Sockets

Download M48T35AV-10MH6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

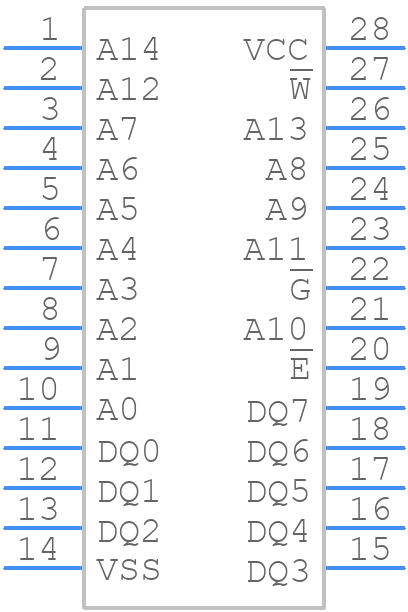

M48T35AV-10MH6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

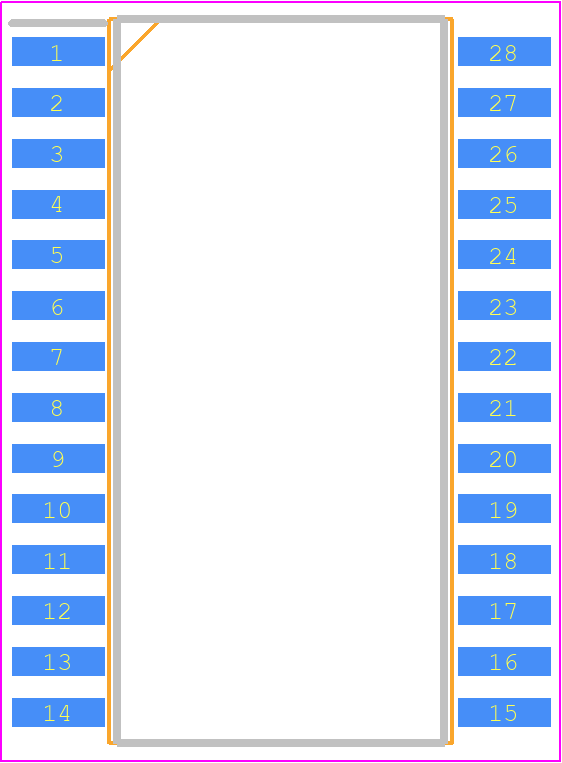

M48T35AV-10MH6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH28
click to zoom
3D Models
M48T35AV-10MH6E - STMicroelectronics - 3D model - Small Outline Packages - SOH28
click to zoom

M48T35AV-10MH6E Details

  • Manufacturer Part Number:

    M48T35AV-10MH6E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Memory IC Type:

    STANDARD SRAM

M48T35AV-10MH6E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M48T35AV-10MH6E is 2.7V to 3.6V.
  • The POR circuitry in the M48T35AV-10MH6E is designed to reset the device when the power supply voltage is below a certain threshold. To handle POR, ensure that the power supply voltage is stable and within the recommended range before accessing the device.
  • The M48T35AV-10MH6E supports a maximum clock frequency of 10 MHz.
  • To implement a BBR in the M48T35AV-10MH6E, connect a battery to the VBAT pin and ensure that the battery voltage is within the recommended range. The device will automatically switch to battery power when the main power supply is interrupted.
  • The XOUT pin in the M48T35AV-10MH6E is an output pin that provides a clock signal that can be used to drive external circuits.
