Part Image

M48T58Y-70MH1 - STMicroelectronics

Description: STMicroelectronics M48T58Y-70MH1 NVRAM, 5V 28-Pin SOH

Download ECAD Model

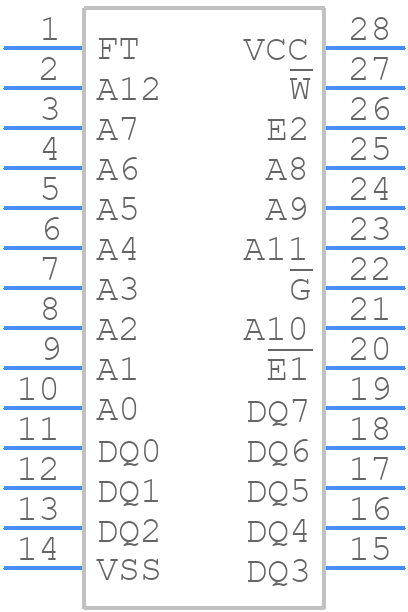

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

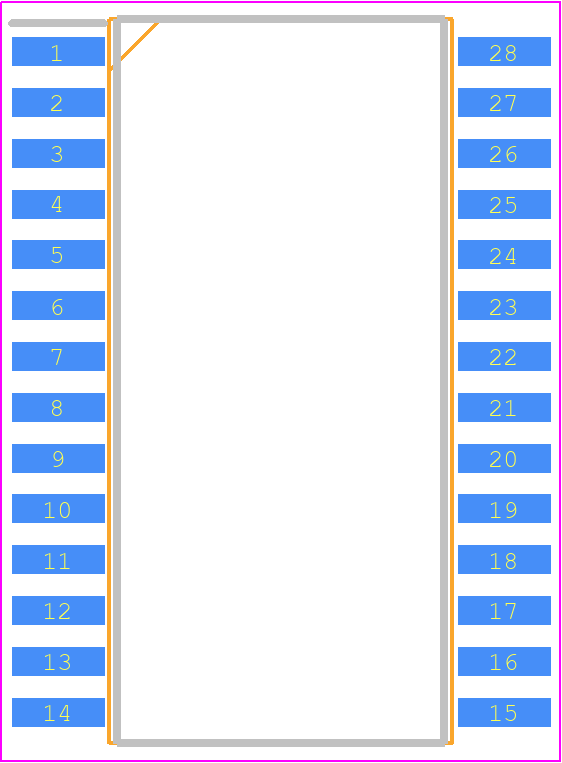

M48T58Y-70MH1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOH28
click to zoom

3D Models

M48T58Y-70MH1 - STMicroelectronics  - 3D model - Small Outline Packages - SOH28
click to zoom

M48T58Y-70MH1 Details

  • Manufacturer Part Number:

    M48T58Y-70MH1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.330 INCH, PLASTIC, SOH-28

  • Pin Count:

    28

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    8.75

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • Clock Frequency-Max:

    0.032 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • Interrupt Capability:

    N

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    18.1 mm

  • Number of Terminals:

    28

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • RAM (words):

    8184

  • Seated Height-Max:

    3.05 mm

  • Subcategory:

    Timer or RTC

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Volatile:

    NO

  • Width:

    8.56 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

M48T58Y-70MH1 Overview

Use the download button to access the M48T58Y-70MH1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M48T5, or try a keyword search, such as Timers or RTCs

Parts related to M48T58Y-70MH1

Showing 0 results

M48T58Y-70MH1 Alternates

Showing results

Image Part Number Model
Part Image M48T58Y-70MH1TR STMicroelectronics

0 TIMER(S), REAL TIME CLOCK, PDSO28, 0.330 INCH, PLASTIC, SOH-28
