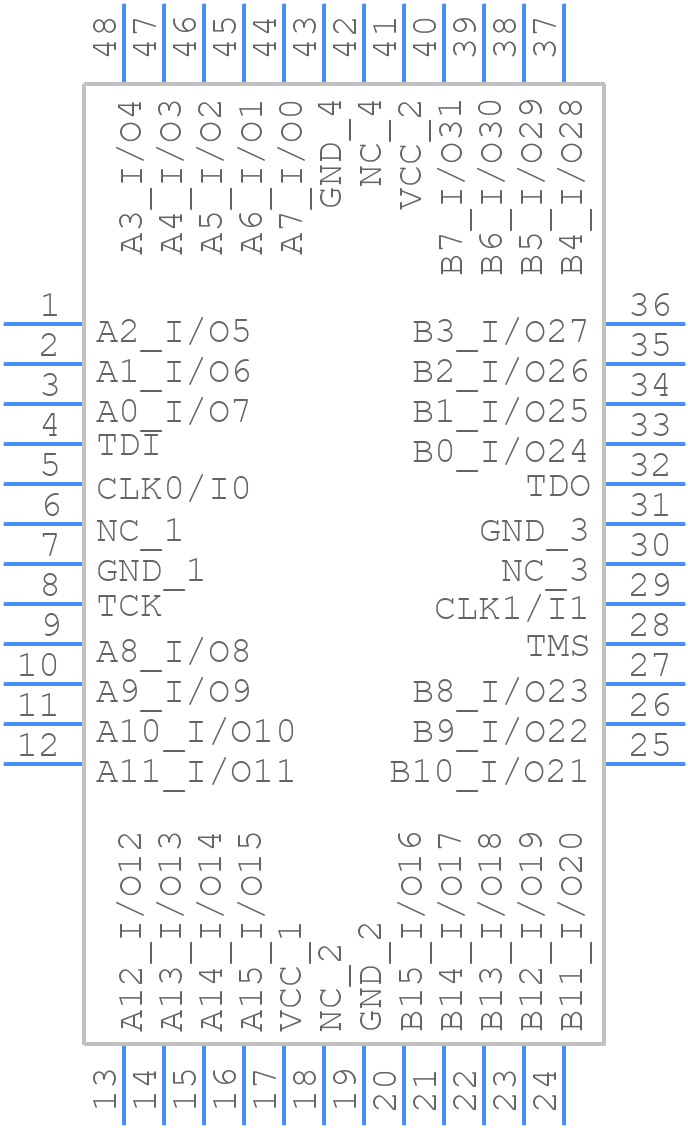

M4A5-32/32-5VC48 - Lattice Semiconductor

M4A5-32/32-5VC48 Details

• Manufacturer Part Number:

  M4A5-32/32-5VC48

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  TQFP-48

• Pin Count:

  48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Additional Feature:

  YES

• Clock Frequency-Max:

  105 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e0

• JTAG BST:

  YES

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  32

• Number of Inputs:

  32

• Number of Macro Cells:

  32

• Number of Outputs:

  32

• Number of Terminals:

  48

• Operating Temperature-Max:

  70 °C

• Organization:

  0 DEDICATED INPUTS, 32 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  240

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  5 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
