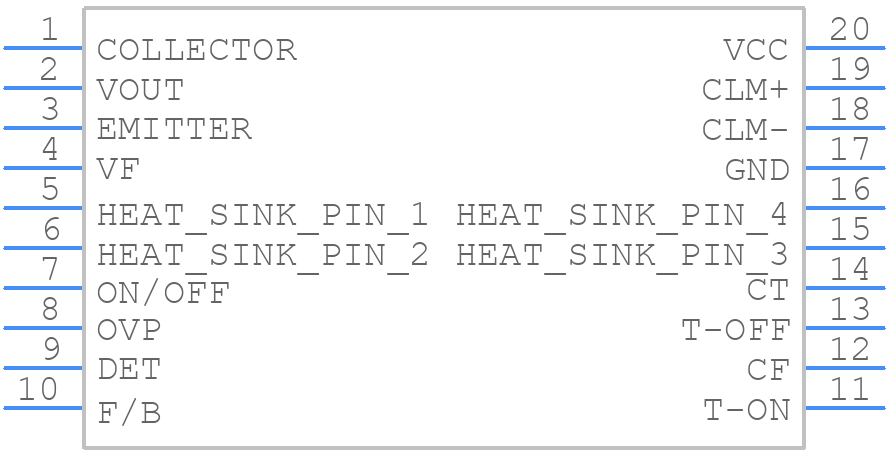

M51995AFP - Renesas Electronics

M51995AFP Details

• Manufacturer Part Number:

  M51995AFP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  5.30 X 12.60 MM, 1.27 MM PITCH, PLASTIC, SOP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  12 V

• Input Voltage-Nom:

  18 V

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.6 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  SINGLE

• Switching Frequency-Max:

  500 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
