M5757/23-003 - TE Connectivity

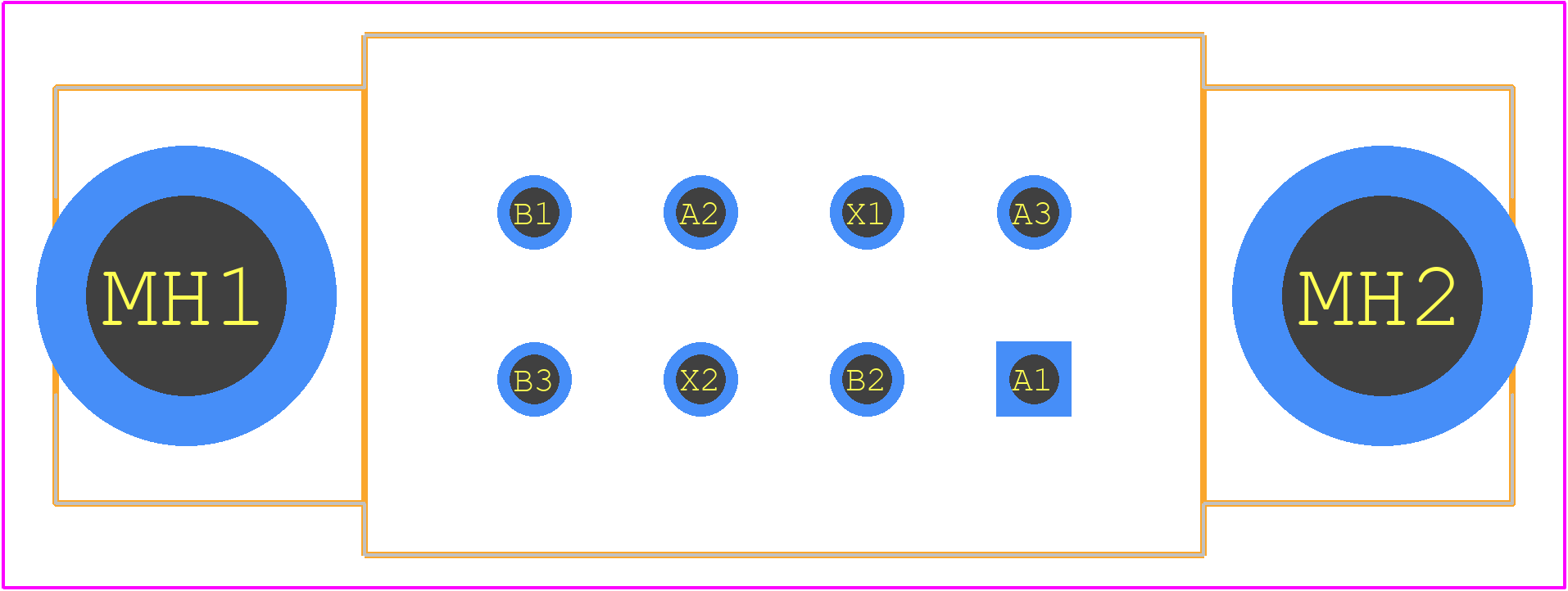

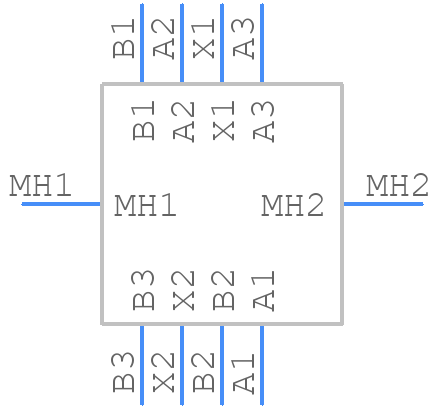

M5757/23-003 Details

• Manufacturer Part Number:

  M5757/23-003

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  TE Connectivity

• Body Breadth:

  15.87 mm

• Body Height:

  25.65 mm

• Body Length or Diameter:

  27.3 mm

• Coil Operate Voltage(DC):

  13 V

• Coil Power:

  2341 mW

• Coil Release Voltage(DC):

  7 V

• Coil Resistance:

  300 Ω

• Coil Voltage(DC)-Max:

  26.5 V

• Coil Voltage-Nom:

  26.5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  5A@115VAC

• Contact Current(AC)-Max:

  10 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Rating R Load:

  10A@28VDC

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  50000 Cycle(s)

• Input Switching Control Type:

  Random

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Physical Dimension:

  27.3mm x 15.87mm x 25.65mm

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT-CO

• Release Time:

  15 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.005001270002540005 inch

• Termination Type:

  SOLDER
