M6106/19-022 footprint, schematic symbol and 3D model by TE Connectivity

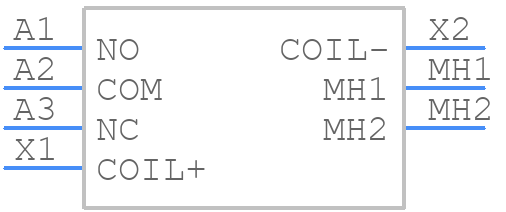

Symbol

click to zoom

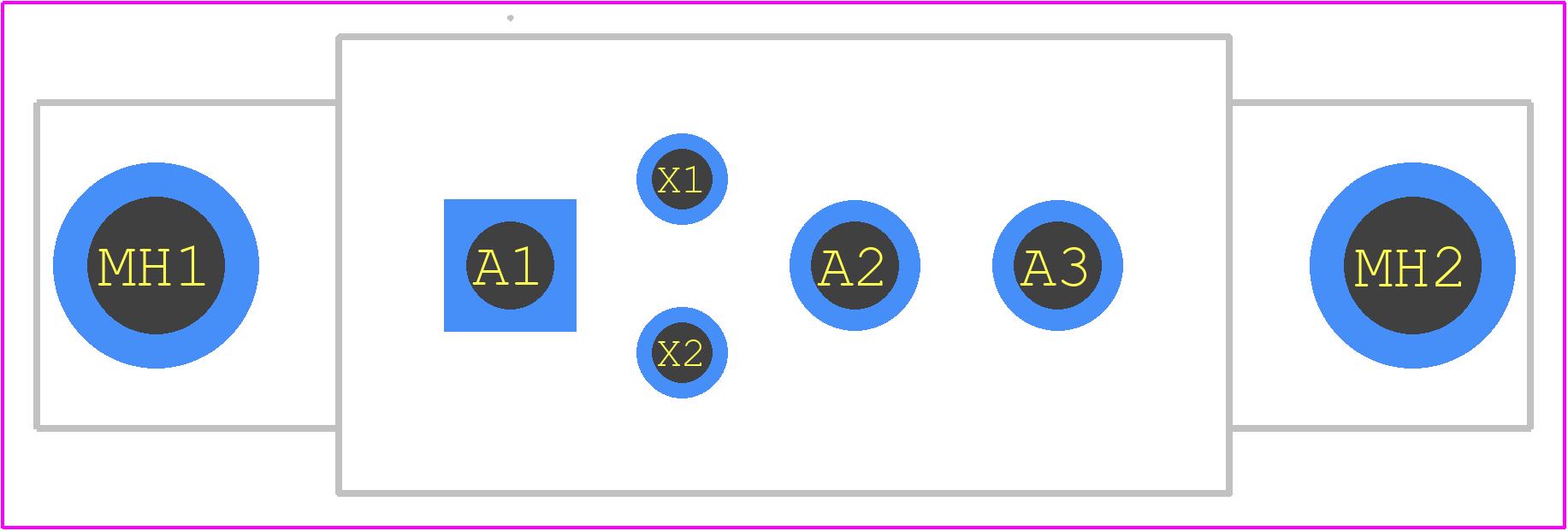

PCB Footprints

M6106/19-022 - TE Connectivity PCB footprint - Other - Other - M6106/19-022-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M6106/19-022
Part Number M6106/19-022
Manufacturer TE Connectivity
Pin Count 7
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - M6106/19-022-5
Released Date Mar 23, 2023
Last Modified Date Feb 3, 2026 1:01 PM UTC
Pinout / Pin List Click Here (Member Only)

M6106/19-022 Details

Manufacturer Part Number:
M6106/19-022
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
42 Weeks
Manufacturer:
TE Connectivity
YTEOL:
6
Coil Resistance:
320 Ω
Coil Voltage(DC)-Max:
28 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
25 A
Contact Current(DC)-Max:
25 A
End Contact Material:
SILVER CADMIUM OXIDE
Mounting Feature:
PANEL MOUNT
Operating Frequency-Max:
400 MHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-70 °C
Relay Action:
MOMENTARY
Relay Form:
1 FORM C
Relay Function:
SPST-CO
Relay Type:
POWER/SIGNAL RELAY
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Termination Type:
SOLDER HOOK
