M62421FP - Renesas Electronics

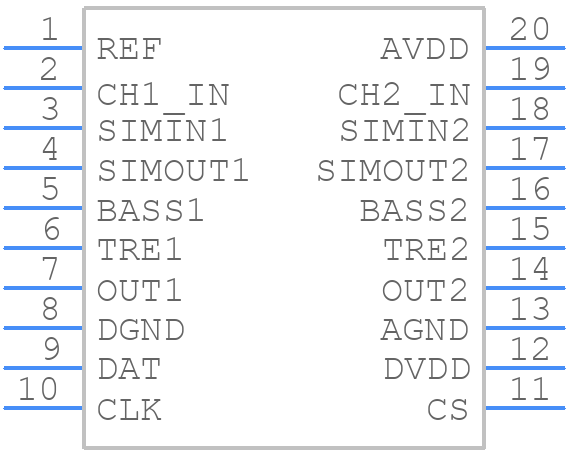

M62421FP Details

• Manufacturer Part Number:

  M62421FP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  5.30 X 12.60 MM, 1.27 MM PITCH, PLASTIC, SOP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY

• Channel Separation:

  100 dB

• Consumer IC Type:

  TONE CONTROL CIRCUIT

• Harmonic Distortion:

  0.007%

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.6 mm

• Number of Bands:

  2

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.1 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max (Vsup):

  9.5 V

• Supply Voltage-Min (Vsup):

  5.5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
