M80-4033405 - Harwin

Description: 17+17 Pos. Female Receptacle DIL Straight 2mm THT Connector, Slotted Jackscrews, Gold

Download M80-4033405 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this M80-4033405 model

Email notifications will be applied after download.

Send part feedback

Symbol

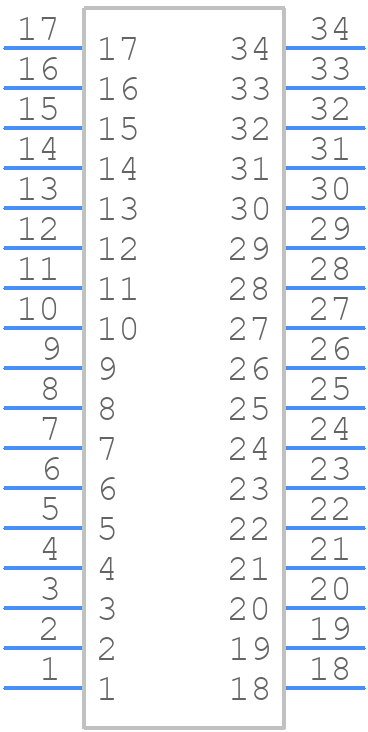

M80-4033405 - Harwin - PCB symbol

PCB Footprints

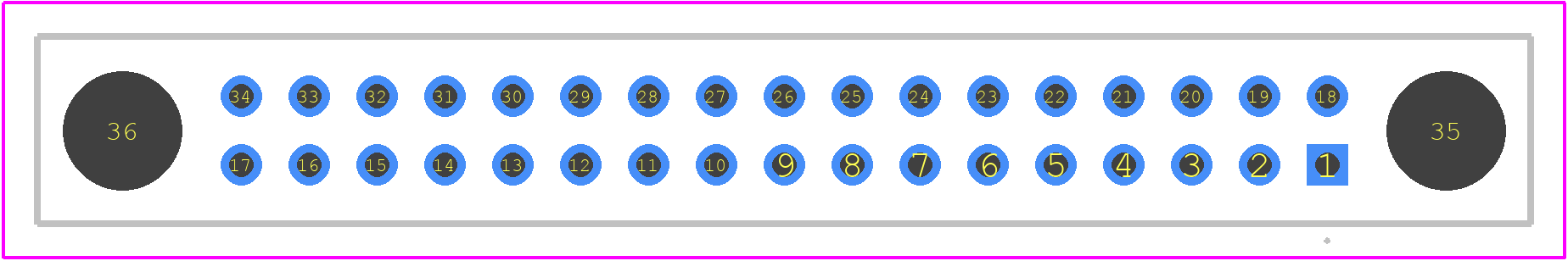

M80-4033405 - Harwin PCB footprint - Other - Other - M80-4033405-2

3D Models

M80-4033405 - Harwin - 3D model - Other - M80-4033405-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for M80-4033405
Part Number M80-4033405
Manufacturer Harwin
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - M80-4033405-2
Released Date Sep 19, 2026
Last Modified Date Aug 14, 2026 5:35 PM UTC
Pinout / Pin List Click Here (Member Only)

M80-4033405 Details
