The recommended torque for the M80-4201001 screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
While the datasheet specifies 24-20 AWG wire size, the M80-4201001 connector can accommodate smaller wire sizes with proper wire preparation and strain relief. However, it's essential to ensure the wire insulation does not exceed the maximum diameter specified in the datasheet.
To ensure reliable connections, make sure to follow proper wire stripping and termination techniques, use the correct torque, and apply a suitable wire strain relief method. Additionally, consider using a wire dressing or cable tie to secure the wires and prevent vibration-induced failures.
The M80-4201001 connector is designed for general-purpose applications. While it can withstand some vibration and temperature fluctuations, it may not be suitable for extreme environments. For high-vibration or high-temperature applications, consider using connectors specifically designed for those conditions, such as Harwin's Datamate or Gecko series.
The M80-4201001 connector is designed for manual wire termination. While it's possible to use automated wire termination equipment, it's essential to consult with the equipment manufacturer and Harwin to ensure compatibility and proper setup.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M80-4201001 Overview

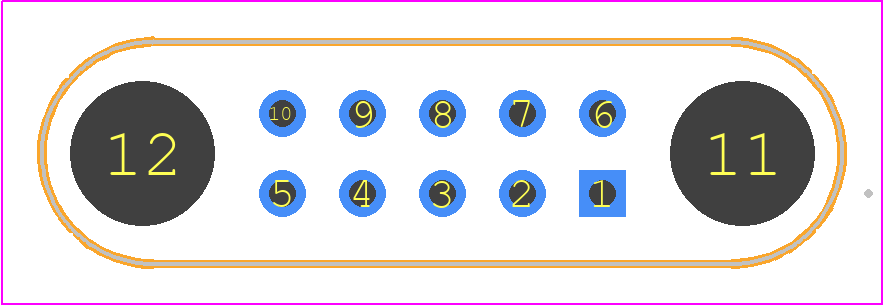

Use the download button to access the M80-4201001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-4,
or try a keyword search, such as Headers and Edge Type Connectors
