M80-5000000M2-08-331-00-000 - Harwin

Description: Datamate Mix-Tek: 8 Pos Plug SIL Straight 3.5mm THT Power Connector 3.5mm Board Mount

Download M80-5000000M2-08-331-00-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M80-5000000M2-08-331-00-000 - Harwin - PCB symbol
click to zoom

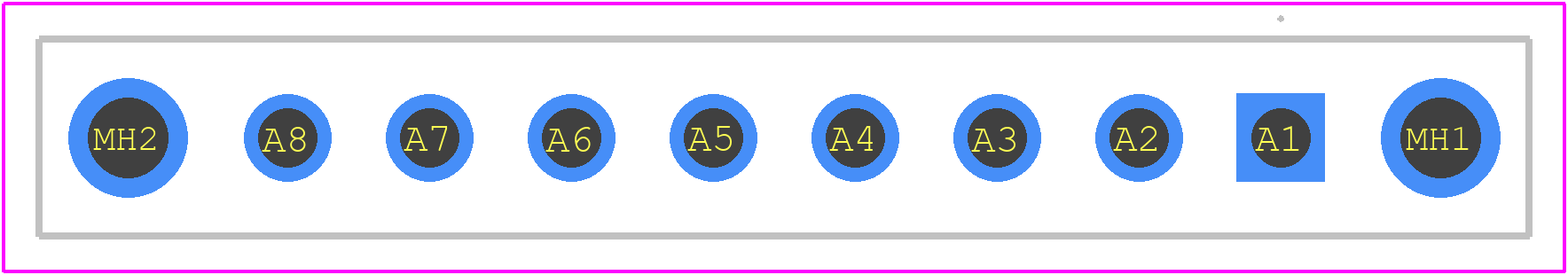

PCB Footprints
M80-5000000M2-08-331-00-000 - Harwin PCB footprint - Other - Other - M80-5000000M2-08-331-00-000-2
click to zoom
3D Models
M80-5000000M2-08-331-00-000 - Harwin - 3D model - Other - M80-5000000M2-08-331-00-000-2
click to zoom

M80-5000000M2-08-331-00-000 Details

  • Manufacturer Part Number:

    M80-5000000M2-08-331-00-000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Harwin

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):20A

  • Body Breadth:

    0.217 inch

  • Body Depth:

    0.205 inch

  • Body Length:

    0.315 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

M80-5000000M2-08-331-00-000 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M80 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The M80 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the M80 connector is designed to support high-speed signals up to 10 Gbps, making it suitable for high-speed applications such as Ethernet and PCIe.
  • Yes, the M80 connector is designed to withstand harsh environments, with a rating of IP67 for dust and water ingress, and resistance to a wide range of chemicals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M80-5000000M2-08-331-00-000 Overview

Use the download button to access the M80-5000000M2-08-331-00-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-5, or try a keyword search, such as Power Connectors
