The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific screw type and material used in your application to ensure the correct torque value.
To ensure reliable connections in high-vibration environments, use a screw-locking mechanism, apply a suitable threadlocking compound, and consider using a connector with a ruggedized design, such as the M80-8282642, which is designed for harsh environments.
The M80-8282642 connector is rated for operation in temperatures ranging from -40°C to 125°C, but it's essential to consult the specific application and environmental conditions to ensure the connector meets the required temperature range.
The M80-8282642 connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's crucial to ensure the connector is properly sealed and protected from moisture ingress in high-humidity or wet environments.
The M80-8282642 connector is rated for a minimum of 500 mating cycles, but the actual number of cycles may vary depending on the application, usage, and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M80-8282642 Overview

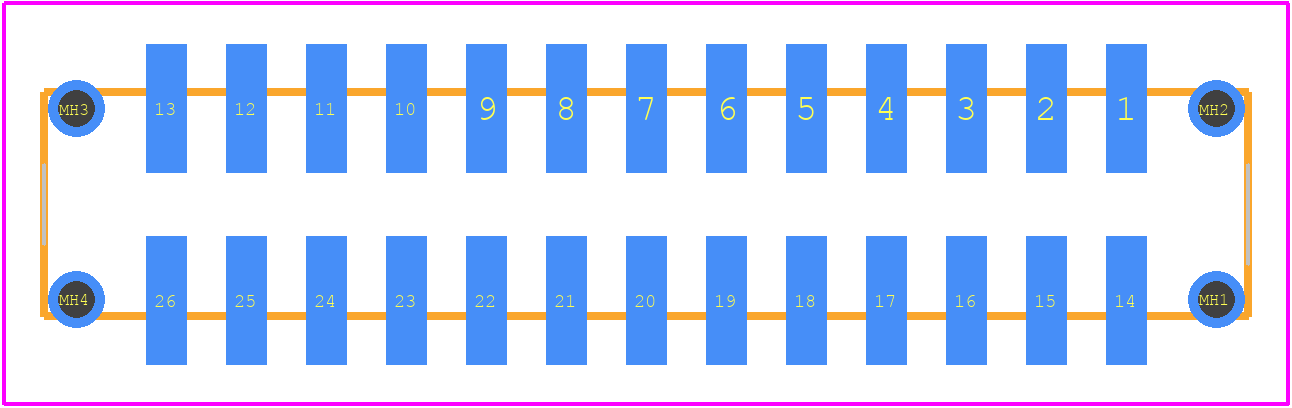

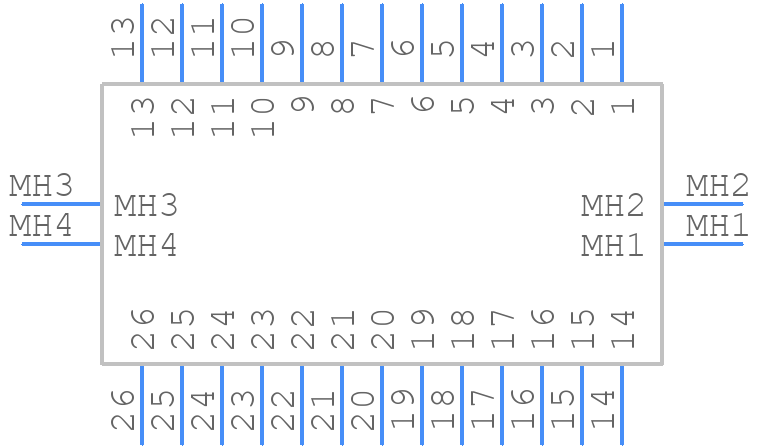

Use the download button to access the M80-8282642 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-8,
or try a keyword search, such as Headers and Edge Type Connectors
