M80-8283442 - Harwin

Description: Datamate L-Tek: 17+17 Pos Plug DIL Straight SMT Connector Latches Gold+Tin

Download M80-8283442 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

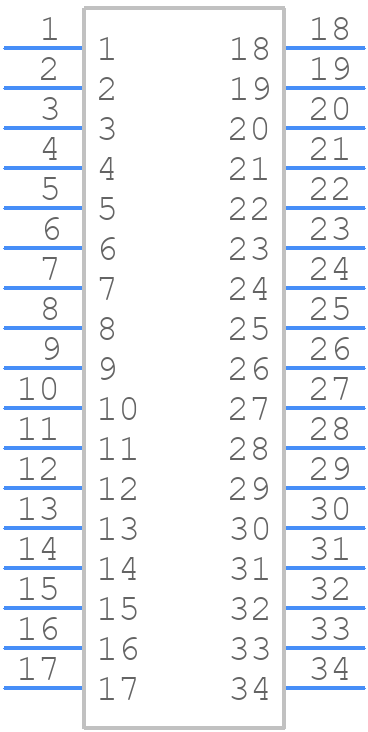

M80-8283442 - Harwin - PCB symbol
click to zoom
PCB Footprints

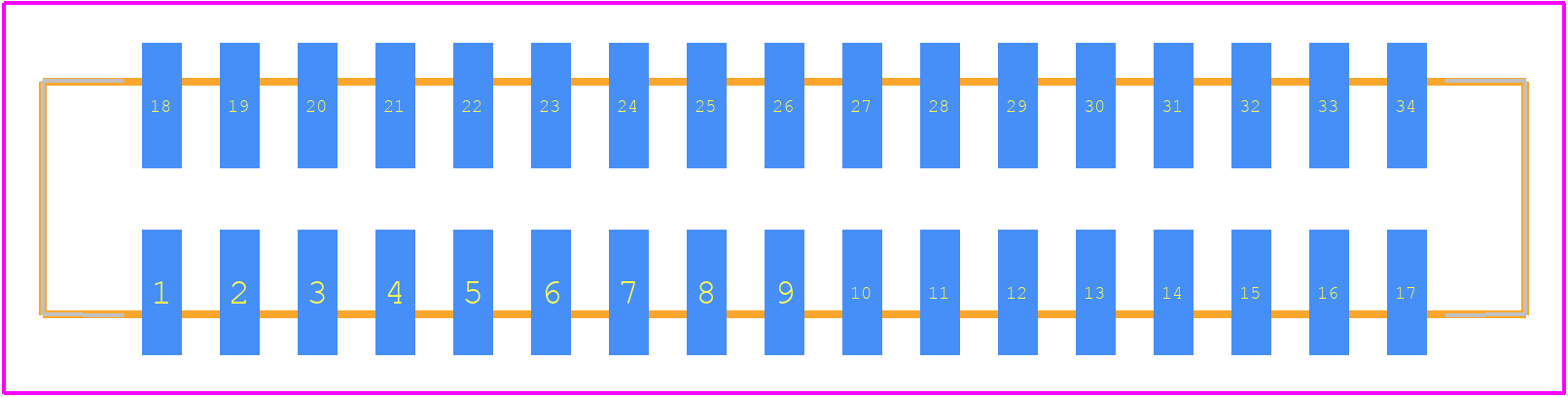

M80-8283442 - Harwin PCB footprint - Other - Other - M80-8283442-10
click to zoom
3D Models
M80-8283442 - Harwin - 3D model - Other - M80-8283442-10
click to zoom

M80-8283442 Details

  • Manufacturer Part Number:

    M80-8283442

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8.4

  • Additional Feature:

    LATCHED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

M80-8283442 Frequently Asked Questions (FAQs)

  • The recommended torque for the M80-8283442 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the M80-8283442 connector is designed to withstand high-vibration environments, but it's essential to follow proper mounting and installation procedures to ensure reliable performance.
  • The M80-8283442 connector is rated for operating temperatures up to 125°C, but it's crucial to consider the specific application and environmental conditions to ensure reliable performance.
  • The M80-8283442 connector is designed for up to 500 mating cycles, but this may vary depending on the specific application, environmental conditions, and maintenance practices.
  • The M80-8283442 connector is designed to withstand harsh environments, but it's essential to follow proper sealing and protection procedures to ensure reliable performance. Consult the datasheet and manufacturer's guidelines for specific recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M80-8283442 Overview

Use the download button to access the M80-8283442 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-8, or try a keyword search, such as Headers and Edge Type Connectors
