Part Image

M80-8411642 - Harwin

Description: Datamate L-Tek DIL Male Horizontal 3mm Throughboard Connector, unlatched, selective gold + tin, 8+8 contacts

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

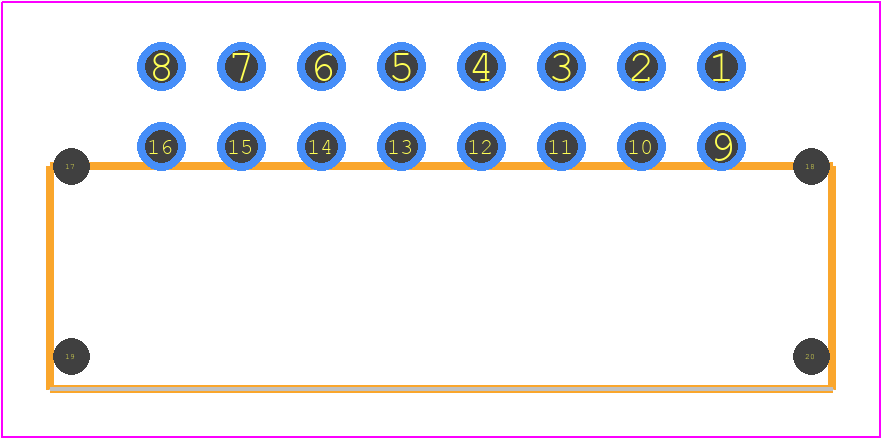

M80-8411642 - Harwin PCB footprint - Other - Other - M80-8411642
click to zoom

3D Models

M80-8411642 - Harwin  - 3D model - Other - M80-8411642
click to zoom

M80-8411642 Details

  • Manufacturer Part Number:

    M80-8411642

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Risk Rank:

    1.8

  • YTEOL:

    8.7

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.234 inch

  • Body Depth:

    0.32 inch

  • Body Length:

    0.77 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.0066 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Headers and Edge Type Connectors

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

M80-8411642 Overview

Use the download button to access the M80-8411642 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-8, or try a keyword search

Parts related to M80-8411642

Showing 0 results

M80-8411642 Alternates

Showing results

Image Part Number Model
Part Image M80-8681605 Harwin

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,
