M80-8502042 - Harwin

Description: Datamate L-Tek: 10+10 Pos Receptacle DIL Straight 3mm THT Connector Gold+Tin

Download M80-8502042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M80-8502042 - Harwin - PCB symbol
click to zoom
PCB Footprints

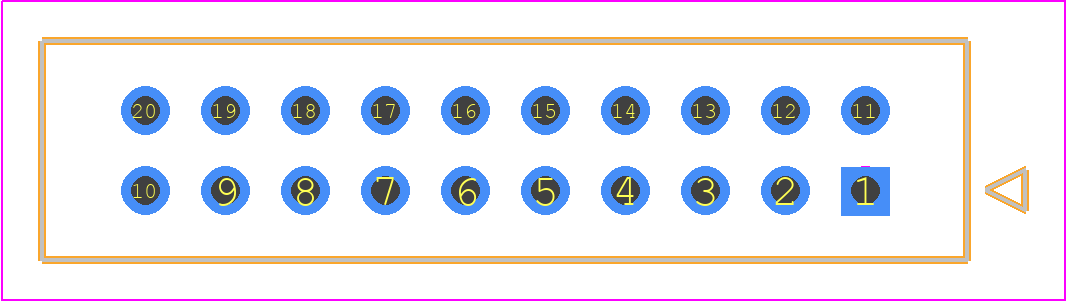

M80-8502042 - Harwin PCB footprint - Other - Other - M80-85020YY
click to zoom
3D Models
M80-8502042 - Harwin - 3D model - Other - M80-85020YY
click to zoom

M80-8502042 Details

  • Manufacturer Part Number:

    M80-8502042

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8

  • Additional Feature:

    POLARISED

  • Body Breadth:

    0.217 inch

  • Body Depth:

    0.204 inch

  • Body Length:

    0.911 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    2.78 N

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.0066 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

M80-8502042 Frequently Asked Questions (FAQs)

  • The recommended torque for the M80-8502042 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the M80-8502042 connector is designed to withstand high-vibration environments, but it's essential to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The M80-8502042 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity, but it's crucial to follow proper sealing and protection guidelines to ensure reliable performance.
  • While the M80-8502042 connector is designed to be compatible with other Harwin connectors, compatibility with connectors from other manufacturers is not guaranteed. It's recommended to verify compatibility before using connectors from different manufacturers.
  • The maximum current rating for the M80-8502042 connector is 3A per contact, but this may vary depending on the specific application and environmental conditions. It's essential to consult the datasheet and manufacturer's guidelines for specific current rating information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M80-8502042 Overview

Use the download button to access the M80-8502042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-8, or try a keyword search, such as Headers and Edge Type Connectors
