The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm. It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
Yes, the M80-MH313M5-04 connector is designed to withstand high-vibration environments. The connector's screw-lock mechanism and rugged design make it suitable for use in applications with high vibration, such as in aerospace, industrial, or automotive systems.
Yes, the M80-MH313M5-04 connector is part of the M80 series and is compatible with other connectors in the same series. This allows for flexibility in design and makes it easier to integrate the connector into existing systems.
The M80-MH313M5-04 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications, from industrial to aerospace and defense.
Yes, the M80-MH313M5-04 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M80-MH313M5-04 Overview

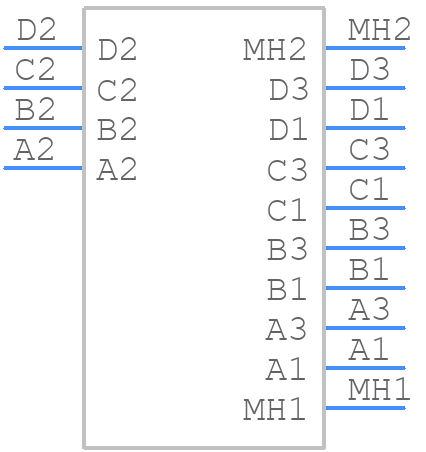

Use the download button to access the M80-MH313M5-04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M80-M,
or try a keyword search, such as Other RF Connectors
