M80-MH313M5-08 footprint, schematic symbol and 3D model by Harwin

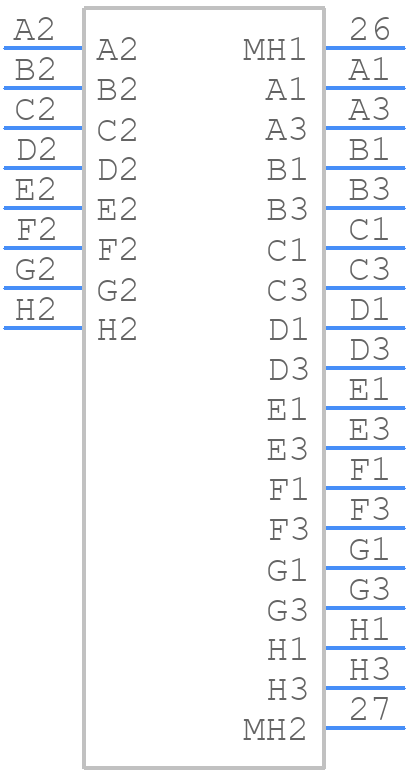

Symbol

click to zoom

PCB Footprints

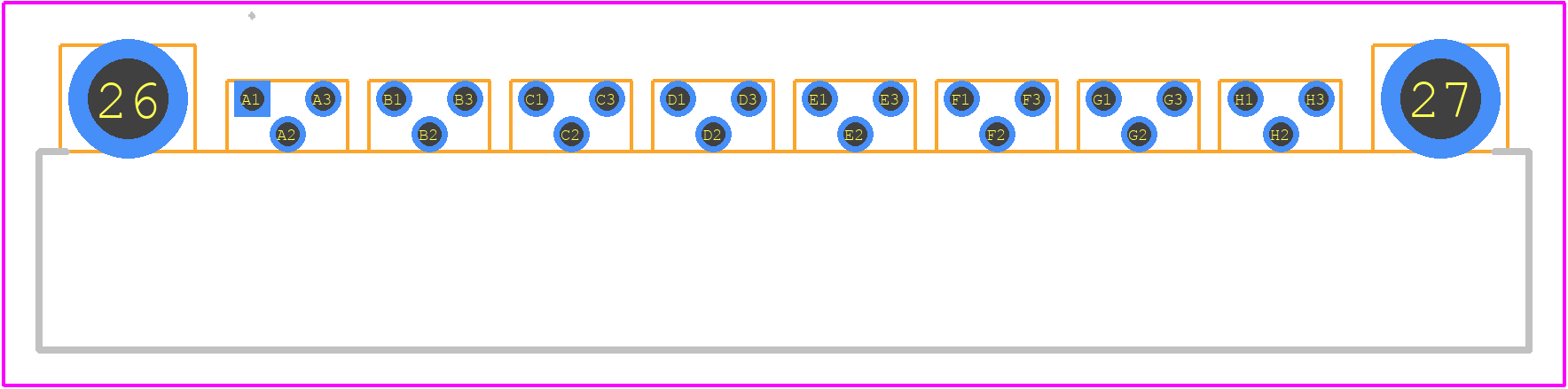

M80-MH313M5-08 - Harwin PCB footprint - Other - Other - M80-MH313M5-08-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M80-MH313M5-08
Part Number M80-MH313M5-08
Manufacturer Harwin
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - M80-MH313M5-08-3
Released Date Oct 22, 2019
Last Modified Date Jan 2, 2026 1:22 PM UTC
Pinout / Pin List Click Here (Member Only)

M80-MH313M5-08 Details

Manufacturer Part Number:
M80-MH313M5-08
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
UK
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Harwin
YTEOL:
8
Connector Type:
BOARD CONNECTOR

M80-MH313M5-08 Frequently Asked Questions (FAQs)

The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
Yes, the M80-MH313M5-08 is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the M80-MH313M5-08 is designed to operate in temperatures ranging from -40°C to +125°C and can withstand humidity up to 95% RH.
The M80-MH313M5-08 has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
The M80-MH313M5-08 is rated for a maximum current of 3A per contact, making it suitable for moderate-current applications. For high-current applications, consider using a different connector or consulting with a Harwin representative.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

M80-MH313M5-08 Overview

Use the download button to access the M80-MH313M5-08 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M80-M, or try a keyword search, such as Other RF Connectors
