Technical Content
Part Image

M830120 - Kyocera AVX

Description: Antennas Ceramic Chip ANTENNA GPS Freq1560-1606MHz

Download M830120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

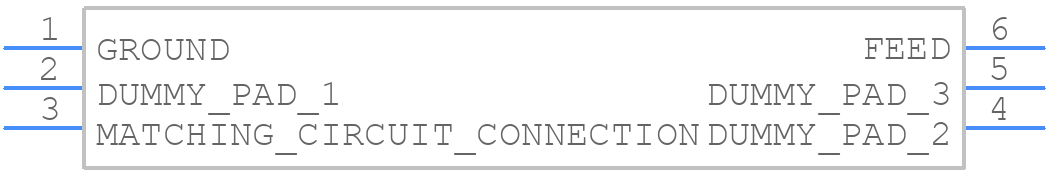

Symbol
M830120 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
M830120 - Kyocera AVX PCB footprint - Small Outline No-lead - Small Outline No-lead - M830120
click to zoom
3D Models
M830120 - Kyocera AVX - 3D model - Small Outline No-lead - M830120
click to zoom

M830120 Details

  • Manufacturer Part Number:

    M830120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Additional Feature:

    IT CAN ALSO BE OPERATED AT1575MHZ AND FROM 1559 TO 1591MHZ AND FROM 1593 TO 1610MHZ

  • Application:

    AGRICULTURE, AUTOMOTIVE, DIGITAL SIGNAGE, HEALTHCARE, INDUSTRIAL DEVICES, SMART HOME, TRACKING

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    1563 MHz

  • Operating Frequency-Min:

    1559 MHz

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    DILCC6,.12,128

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    GPS ANTENNA

  • Surface Mount:

    YES

  • VSWR-Max:

    2

M830120 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the M830120 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle the M830120's sensitivity to moisture, it is recommended to store the components in a dry environment with a relative humidity of 60% or less, and to bake the components at 125°C for 24 hours before reflow soldering.
  • The maximum reflow temperature for the M830120 is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.
  • Yes, the M830120 is designed to withstand high-vibration applications, with a vibration frequency range of 10-2000 Hz and an acceleration of 10G.
  • The recommended soldering process for the M830120 is a reflow soldering process with a peak temperature of 250°C, using a solder paste with a melting point of 217°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M830120 Overview

Use the download button to access the M830120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M8301, or try a keyword search, such as RF/Microwave Antennas

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
