- Part Number M830320
- Manufacturer Kyocera AVX
- Pin Count 6
- Part Category Antenna
- Package Category Other
- Footprint Name Other - M830320-2
- Released Date Oct 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M830320 Details
-
Manufacturer Part Number:
M830320
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Kyocera AVX Components
-
YTEOL:
6.05
-
Application:
BLUETOOTH/CELLULAR/WIRELESS/WLAN/ZIGBEE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
6
M830320 Frequently Asked Questions (FAQs)
-
The recommended land pattern for M830320 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.1mm. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal stress.
-
Yes, M830320 is designed to withstand high-vibration environments. It has a robust construction and is qualified to meet the requirements of IEC 60068-2-6, which ensures its reliability in applications with high mechanical stress.
-
To prevent damage, handle M830320 by the edges or the body, avoiding touching the terminations. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the component during assembly.
-
The maximum operating temperature range for M830320 is -55°C to +125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and it's recommended to operate it within the recommended temperature range for optimal performance.
-
Yes, M830320 is designed to operate in humid or moist environments. It has a moisture sensitivity level (MSL) of 1, which means it can withstand exposure to humidity and moisture without damage. However, it's still recommended to follow proper storage and handling procedures to prevent moisture absorption.
Trust Checks
Community Provided
System Verified
Community Approved
M830320 Overview

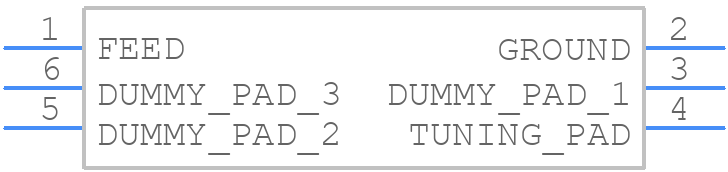

Use the download button to access the M830320 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M8303,
or try a keyword search, such as RF/Microwave Antennas
