M83513/01-EN - TE Connectivity

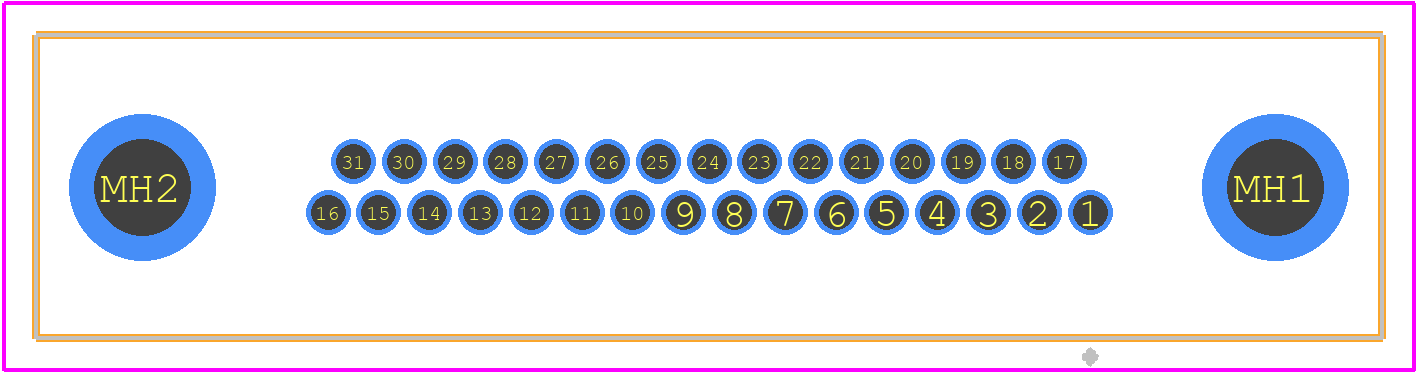

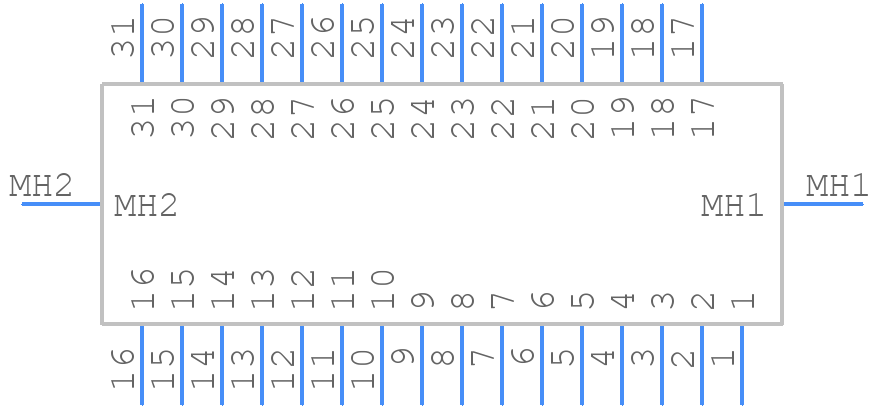

M83513/01-EN Details

• Manufacturer Part Number:

  M83513/01-EN

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  29 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.57

• Additional Feature:

  STANDARD: MIL-DTL-83513

• Body Breadth:

  0.384 inch

• Body Depth:

  0.223 inch

• Body Length:

  1.325 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D MICROMINIATURE CONNECTOR

• Contact Arrangement:

  S31P0

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  500 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.78 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  POLYPHENYLENE SULFIDE

• MIL Conformance:

  NO

• Mains Connector Rating:

  3A

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.043 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .096

• Mounting Type:

  CABLE

• Number Of Connectors:

  ONE

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• Panel Mount:

  NO

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  MIL

• Shell Finish:

  NICKEL

• Shell Material:

  METAL

• Shell Size:

  E

• Terminal Length:

  0.11 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  31

• Wire Size-Max:

  24 AWG

• Wire Size-Min:

  26 AWG

• Withdrawl Force-Min:

  0.139 N
