M83513/10-C01NP - ITT CANNON

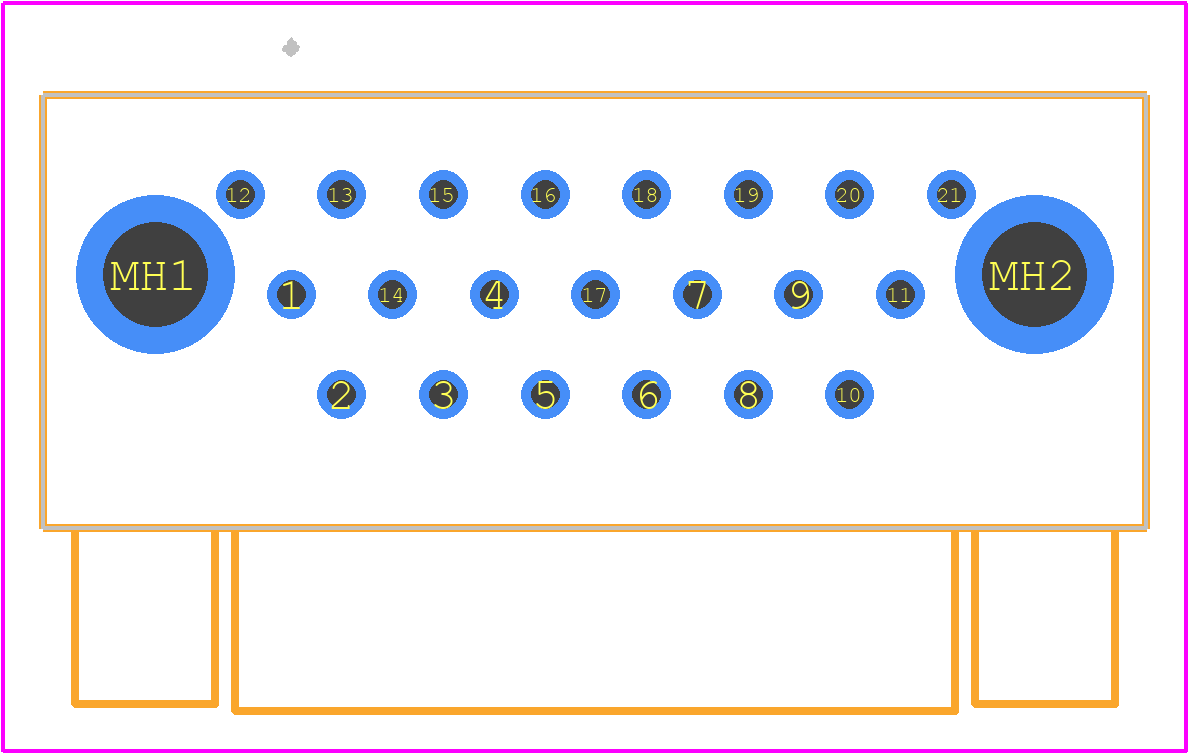

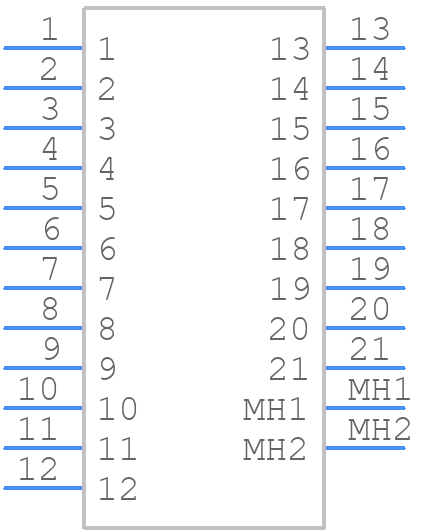

M83513/10-C01NP Details

• Manufacturer Part Number:

  M83513/10-C01NP

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  6

• Additional Feature:

  STANDARD: MIL-DTL-83513

• Board Mounting Option:

  HOLE.096

• Body Breadth:

  0.325 inch

• Body Depth:

  0.425 inch

• Body Length:

  1.087 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D MICROMINIATURE CONNECTOR

• Contact Arrangement:

  S21P0

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  600VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.78 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.043 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #2-56

• Mounting Option 2:

  JACKPOST

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  MIL

• Shell Finish:

  NICKEL

• Shell Material:

  ALUMINUM ALLOY

• Shell Size:

  C

• Terminal Length:

  0.109 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  21

• Withdrawl Force-Min:

  0.139 N
