M83513/25-C01CN footprint, schematic symbol and 3D model by ITT CANNON

M83513/25-C01CN - ITT CANNON

Description: D-Sub MIL Spec Connectors Micro D Metal Shell - 0.050 inch spacingConnector, Receptacle, BS, Sizes 9 - 3721 Contactsoldert pot0.109" long, #24 AWG solid copper wire per QQ-W-343, Type S, solder dipped

Download M83513/25-C01CN Model

Schematic
symbols

PCB
footprints

3D
models

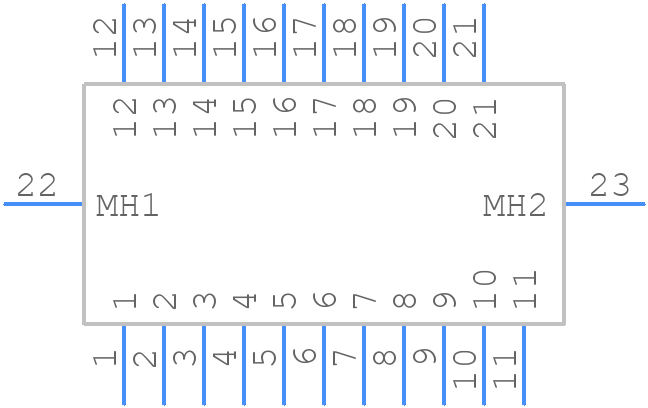

Symbol

click to zoom

PCB Footprints

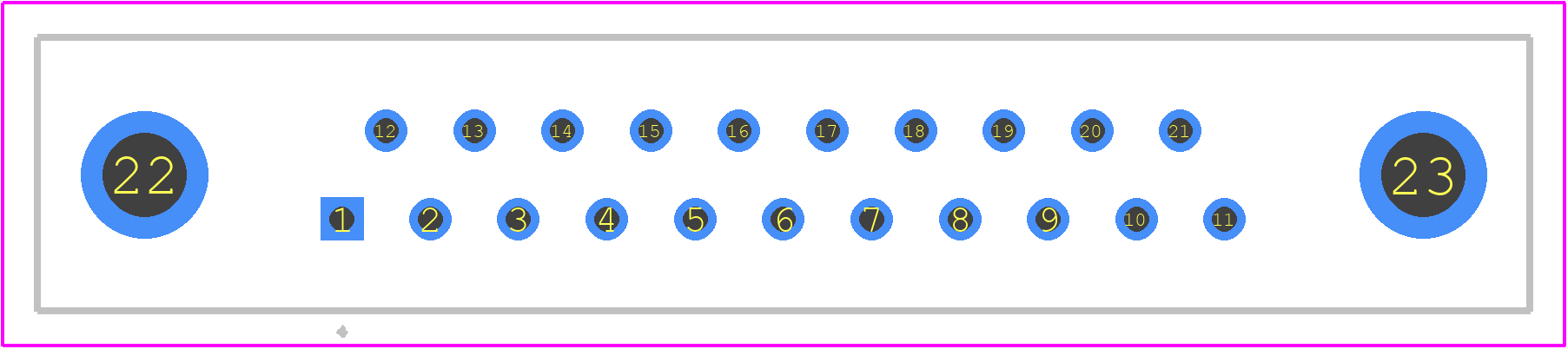

M83513/25-C01CN - ITT CANNON PCB footprint - Other - Other - M83513/25-C01CN-1

click to zoom

3D Models

M83513/25-C01CN - ITT CANNON - 3D model - Other - M83513/25-C01CN-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M83513/25-C01CN
Part Number M83513/25-C01CN
Manufacturer ITT CANNON
Pin Count 23
Part Category Connector
Package Category Other
Footprint Name Other - M83513/25-C01CN-1
Released Date Aug 9, 2024
Last Modified Date Aug 9, 2024 4:09 PM UTC
Pinout / Pin List Click Here (Member Only)

M83513/25-C01CN Details

Manufacturer Part Number:
M83513/25-C01CN
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
20 Weeks
Manufacturer:
ITT Interconnect Solutions
Connector Type:
D MICROMINIATURE CONNECTOR
Shell Finish:
YELLOW CHROMATE/CADMIUM
Shell Material:
ALUMINUM ALLOY
Terminal Length:
0.109 inch

Trust Checks

Expert Contribution

System Verified

Community Approved

M83513/25-C01CN Overview

Use the download button to access the M83513/25-C01CN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M8351, or try a keyword search, such as D Type Connectors
