M83536/6-020M - TE Connectivity

M83536/6-020M Details

• Manufacturer Part Number:

  M83536/6-020M

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  46 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  7

• Additional Feature:

  PANEL MOUNTABLE, TRANSIENT SUPPRESSED DC COIL

• Body Breadth:

  20.57 mm

• Body Height:

  16.25 mm

• Body Length or Diameter:

  20.57 mm

• Coil Current(DC)-Max:

  0.078 A

• Coil Operate Voltage(DC):

  13.5 V

• Coil Power:

  2184 mW

• Coil Release Voltage(DC):

  2.3 V

• Coil Resistance:

  400 Ω

• Coil Voltage(DC)-Max:

  28 V

• Coil Voltage-Nom:

  28 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  5A@115VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER CADMIUM OXIDE

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e0

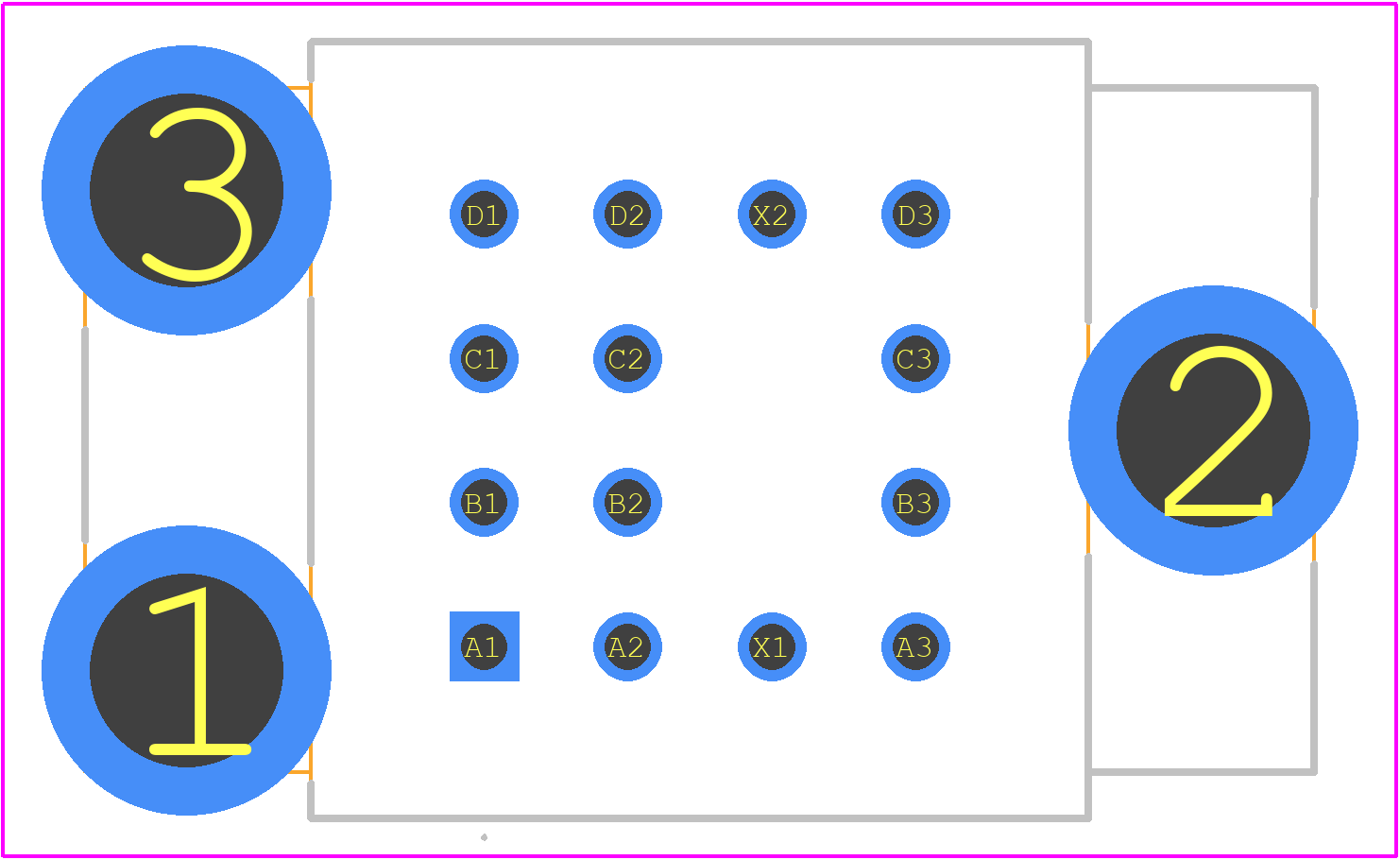

• Mounting Feature:

  PANEL MOUNT

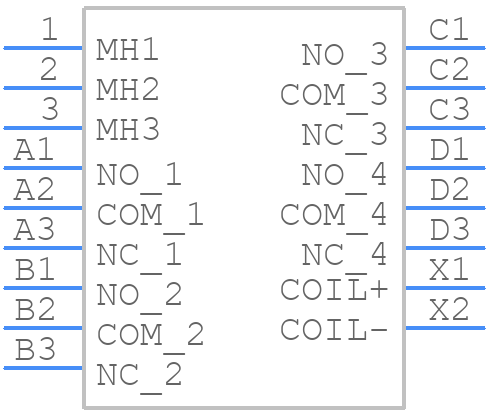

• Number of Terminals:

  14

• Operate Time:

  7 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -70 °C

• Physical Dimension:

  20.57mm x 20.57mm x 16.25mm

• Reference Standard:

  MIL-PRF-83536/6

• Relay Action:

  MOMENTARY

• Relay Form:

  4 FORM C

• Relay Function:

  4PDT-CO

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  7 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Tin Lead

• Terminal Length:

  0.004300228600457201 inch

• Termination Type:

  SOLDER HOOK
