M95P16-IXMCT/E - STMicroelectronics

Description: Ultra low power 16 Mbit serial SPI page EEPROM with dual and quad outputs

Download M95P16-IXMCT/E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

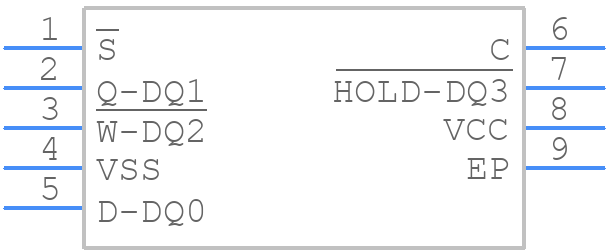

M95P16-IXMCT/E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M95P16-IXMCT/E - STMicroelectronics PCB footprint - Other - Other - UFDFPN 8 2x3x0.6_2024
click to zoom
3D Models
M95P16-IXMCT/E - STMicroelectronics - 3D model - Other - UFDFPN 8 2x3x0.6_2024
click to zoom

M95P16-IXMCT/E Details

  • Manufacturer Part Number:

    M95P16-IXMCT/E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFDFN-8

  • ECCN Code:

    3A991.B.1.B.1

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Clock Frequency-Max (fCLK):

    80 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    500000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.6 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    4.5 ms

  • Write Protection:

    HARDWARE/SOFTWARE

M95P16-IXMCT/E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the M95P16-IXMCT/E is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -40°C to 125°C.
  • The M95P16-IXMCT/E has an internal POR and BOR circuitry. To handle these features, ensure that the power supply ramps up slowly (typically 1-10 ms) to avoid false resets. Also, use an external capacitor (typically 10-100 nF) between the VCC and VSS pins to filter out noise and ensure a clean power-on reset.
  • The M95P16-IXMCT/E can operate at a maximum clock frequency of 16 MHz, as specified in the datasheet. However, it's essential to consider the clock frequency's impact on power consumption and ensure that the device operates within the recommended power consumption specifications.
  • The M95P16-IXMCT/E has built-in security features, including a secure boot mechanism and cryptographic accelerators. To implement secure boot and secure firmware updates, follow STMicroelectronics' guidelines and recommendations for secure firmware development, and use the STM32CubeMX tool to generate the necessary code and configurations.
  • When designing a PCB with the M95P16-IXMCT/E, ensure that the layout follows STMicroelectronics' recommendations for decoupling, signal integrity, and thermal management. Use a 4-layer PCB with a solid ground plane, and place decoupling capacitors close to the device's power pins. Also, consider using a thermal pad or heat sink to dissipate heat generated by the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M95P16-IXMCT/E Overview

Use the download button to access the M95P16-IXMCT/E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M95P1, or try a keyword search, such as EEPROMs
