A good PCB layout for the MA330GQ-Z involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input voltage. A minimum output capacitance of 10uF is recommended.
The MA330GQ-Z is rated for operation from -40°C to +125°C ambient temperature range. However, the device's junction temperature should not exceed 150°C.
Yes, the MA330GQ-Z is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and ensure that the device is properly derated for the specific application.
The power dissipation of the MA330GQ-Z can be calculated using the formula: Pd = (Vin x Iin) - (Vout x Iout). Make sure to consider the device's efficiency, input voltage, output voltage, and output current when calculating the power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MA330GQ-Z Overview

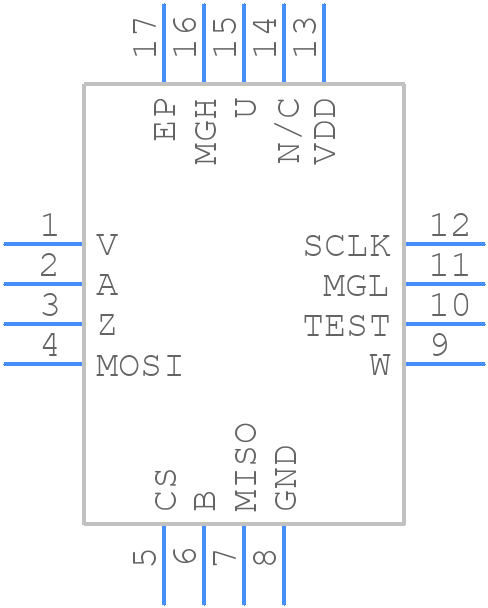

Use the download button to access the MA330GQ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MA330,
or try a keyword search, such as Other Sensors/Transducers
