Part Image

MA524-500M03 - Multicomp Pro

Description: MULTICOMP PRO MA524-500M03TERMINAL BLOCK EUROSTYLE, 3 POSITION, 22-14AWG

Download MA524-500M03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MA524-500M03 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

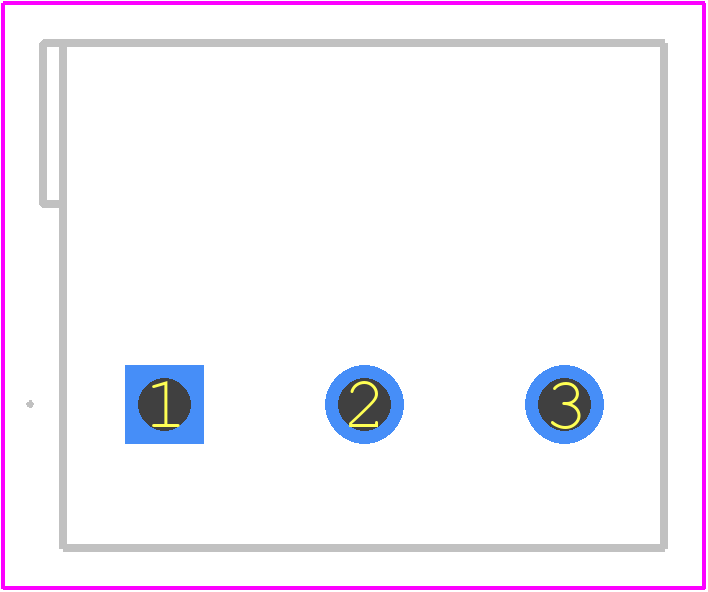

MA524-500M03 - Multicomp Pro PCB footprint - Other - Other - MA524-500M03-1
click to zoom

MA524-500M03 Details

  • Manufacturer Part Number:

    MA524-500M03

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    SPC Multicomp

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MA524-500M03 Overview

Use the download button to access the MA524-500M03 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MA524, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to MA524-500M03

Showing 0 results
