MA5281-BLD footprint, schematic symbol and 3D model by COILCRAFT

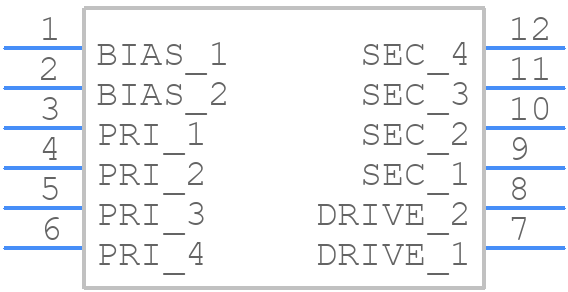

Symbol

click to zoom

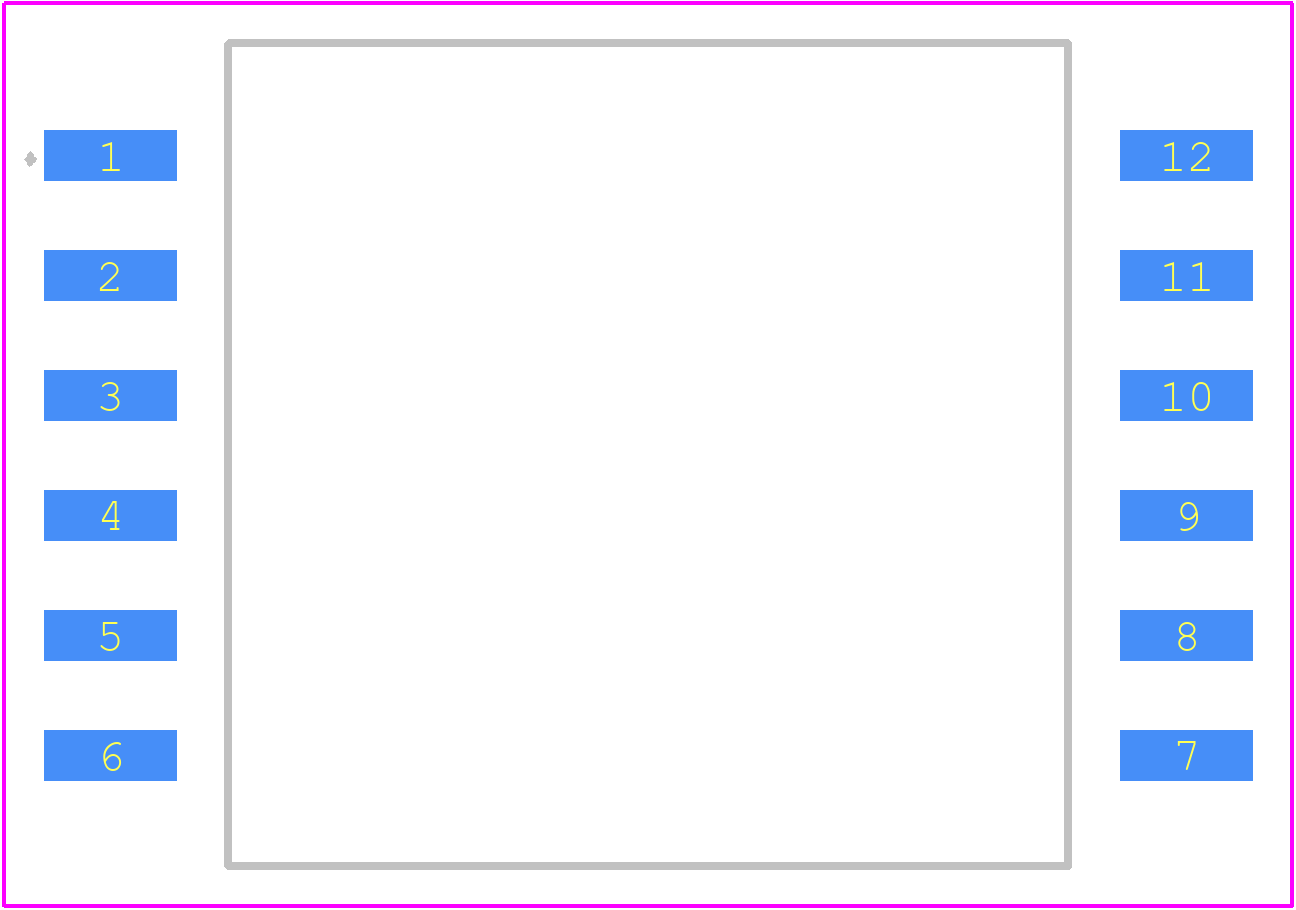

PCB Footprints

MA5281-BLD - COILCRAFT PCB footprint - Other - Other - MA5281-BLD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MA5281-BLD
Part Number MA5281-BLD
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - MA5281-BLD-1
Released Date Jul 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MA5281-BLD Details

Manufacturer Part Number:
MA5281-BLD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.38
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Height:
10.8 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
10.8 V
Length:
21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
15 W
Primary Inductance:
45 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
20.57 mm

MA5281-BLD Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a pad size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad and a 0.5 mm x 0.5 mm thermal pad in the center.
To minimize the impact of the SRF, use the inductor in a circuit with a resonant frequency below the SRF, or add a capacitor in parallel to the inductor to create a low-pass filter, which can help reduce the Q factor and minimize resonance.
The MA5281-BLD has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
Use a soldering profile with a peak temperature of 240°C to 250°C, and ensure the soldering time is within 3-5 seconds. Also, use a solder with a melting point above 217°C to prevent thermal damage to the inductor.
Yes, the MA5281-BLD is designed to withstand high-vibration and high-shock environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, and a shock rating of 100 G, 11 ms duration.

Trust Checks

Community Provided

System Verified

Community Approved

MA5281-BLD Overview

Use the download button to access the MA5281-BLD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MA528, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
