A good PCB layout for the MA732GQ-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, minimize the distance between the output capacitor and the device, and use a low-impedance output capacitor.
The maximum safe operating junction temperature for the MA732GQ-Z is 150°C. Exceeding this temperature may reduce the device's lifespan or cause permanent damage.
While the MA732GQ-Z is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure it meets the necessary standards.
During power-up, ensure the EN pin is pulled high after the input voltage has reached the minimum recommended value. During power-down, pull the EN pin low before the input voltage drops below the minimum recommended value. This ensures proper device operation and prevents unwanted output voltage fluctuations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MA732GQ-Z Overview

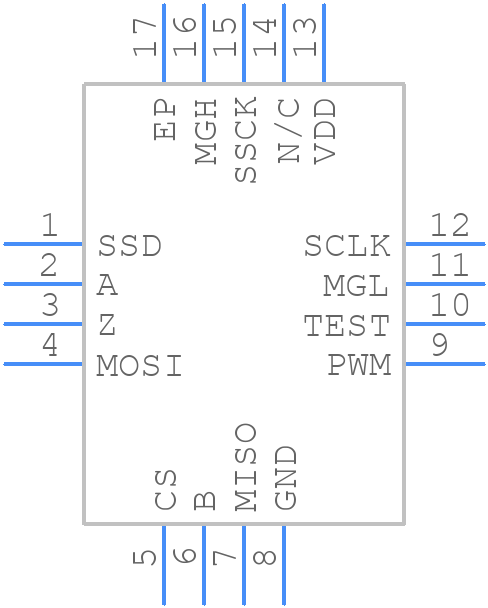

Use the download button to access the MA732GQ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MA732,
or try a keyword search, such as Other Sensors/Transducers
