A good PCB layout is crucial for the MA732GQ. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use short, wide traces for the power lines. Avoid vias and sharp corners, and keep the layout symmetrical to minimize noise and EMI.
Choose X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the input capacitor, a 10uF to 22uF capacitor is recommended. For the output capacitor, a 10uF to 47uF capacitor is recommended. Ensure the capacitors are placed close to the IC and have a low ESL and ESR.
The MA732GQ is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure a junction temperature below 150°C.
Use the formula: Pd = (Vin - Vout) x Iout x Efficiency. Calculate the junction temperature using the formula: Tj = Ta + (Pd x RθJA), where RθJA is the thermal resistance from junction to ambient. Ensure the junction temperature stays below 150°C for reliable operation.
The recommended input voltage range for the MA732GQ is 2.7V to 5.5V. Operating outside this range may affect the regulator's performance, stability, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MA732GQ Overview

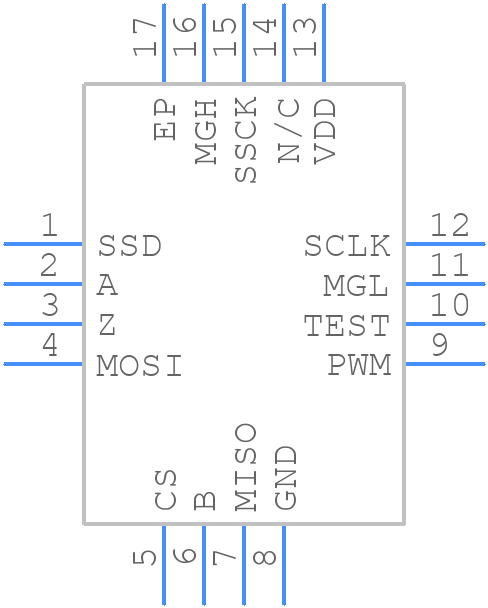

Use the download button to access the MA732GQ schematic symbol, PCB footprint, and 3D model.
