MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
MACOM recommends using a resistive divider network to set the bias voltage, and a decoupling capacitor to filter out noise. The bias voltage should be set to 3.3V, and the current should be limited to 100mA.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal gain and linearity. A series inductor and shunt capacitor can be used to match the input impedance, and a shunt inductor and series capacitor can be used to match the output impedance.
MACOM recommends using a low-noise amplifier stage before the MAAD-011021, and optimizing the bias current and voltage for minimum noise figure. A noise-matching network can also be used to optimize the noise performance.
MACOM recommends operating the MAAD-011021 within a temperature range of -40°C to 85°C for reliable operation. Operating outside this range may affect the device's performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAD-011021 Overview

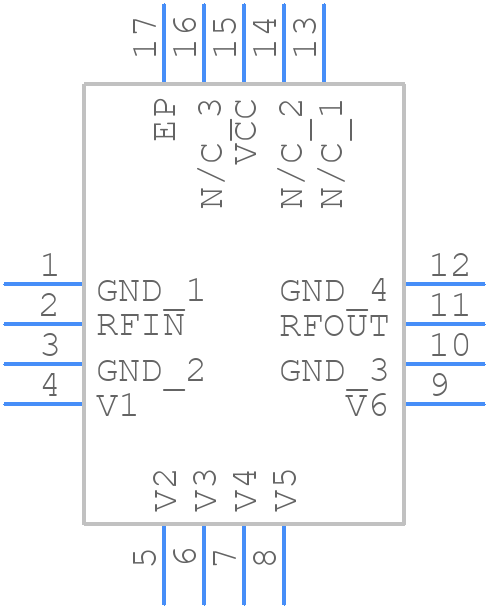

Use the download button to access the MAAD-011021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAD-,
or try a keyword search, such as RF/Microwave Attenuators
