- Part Number MAAL-011134-TR3000
- Manufacturer MACOM
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MAAL-011134-TR3000
- Released Date Apr 23, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAAL-011134-TR3000 Details
-
Manufacturer Part Number:
MAAL-011134-TR3000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
DFN-8
-
Date Of Intro:
2016-04-18
-
Manufacturer:
MACOM
-
YTEOL:
6.83
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
13 dB
-
Input Power-Max (CW):
18 dBm
MAAL-011134-TR3000 Frequently Asked Questions (FAQs)
-
MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
-
The MAAL-011134-TR3000 requires a bias tee or a DC block to provide the necessary DC voltage and current. A bias voltage of 5V and a current of 100mA is recommended. Ensure the bias circuit is designed to provide a low impedance path to ground.
-
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor can be used to match the input impedance, while a shunt inductor and series capacitor can be used to match the output impedance.
-
The MAAL-011134-TR3000 is sensitive to ESD. Handle the device in an ESD-controlled environment, and use ESD-protective packaging and handling procedures. Ensure all personnel handling the device wear ESD-protective wrist straps or use ESD-protective mats.
-
Store the MAAL-011134-TR3000 in its original packaging, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the package body, not the leads.
Trust Checks
Community Provided
System Verified
Community Approved
MAAL-011134-TR3000 Overview

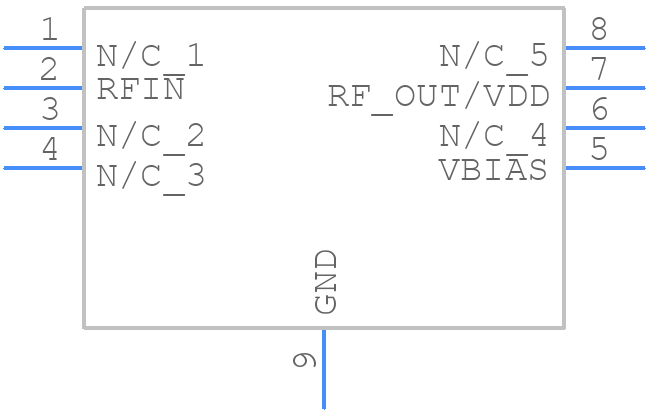

Use the download button to access the MAAL-011134-TR3000 schematic symbol, PCB footprint, and 3D model.
