MACOM provides a recommended PCB layout and land pattern in their application note AN-60-015, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat efficiently. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, MACOM recommends derating the device's power dissipation above 70°C to ensure reliable operation and prevent thermal runaway.
While the device is primarily designed for linear applications, it can be used in switching applications with caution. However, the user must ensure that the device is not subjected to excessive voltage or current stress, and that the switching frequency is within the recommended range.
MACOM provides a troubleshooting guide in their application note AN-60-016, which covers common issues and their solutions. Additionally, ensure that the device is properly biased, and that the PCB layout and component selection are correct.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAAL-011151-TR0100 Overview

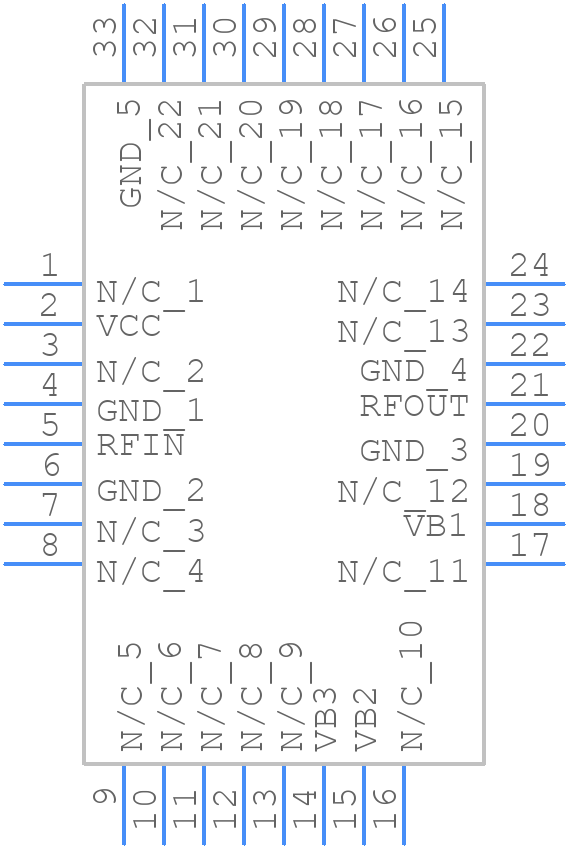

Use the download button to access the MAAL-011151-TR0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
