MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
MACOM recommends attaching the device to a heat sink or a thermal pad, and ensuring good airflow around the device to maintain a junction temperature below 150°C.
MACOM recommends using a pi-network or a T-network for input and output matching, with component values dependent on the specific application and frequency range.
Yes, the MAAL-011186-TR0500 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper balance and minimize even-order harmonics.
The maximum safe operating voltage for the MAAL-011186-TR0500 is 12V, exceeding which may cause permanent damage to the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MAAL-011186-TR0500 Overview

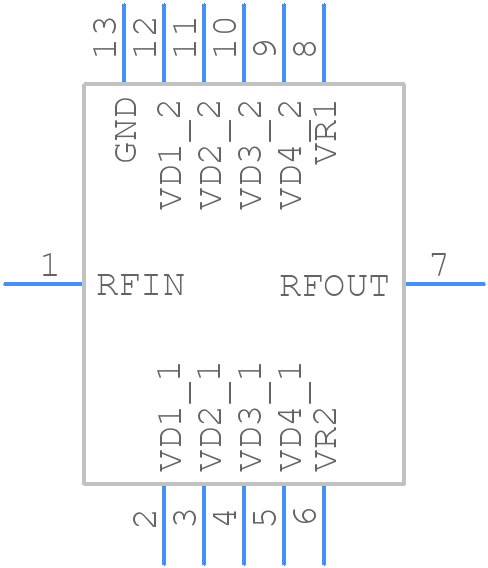

Use the download button to access the MAAL-011186-TR0500 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAAL-,
or try a keyword search, such as RF/Microwave Amplifiers
