MABA-011118 footprint, schematic symbol and 3D model by MACOM

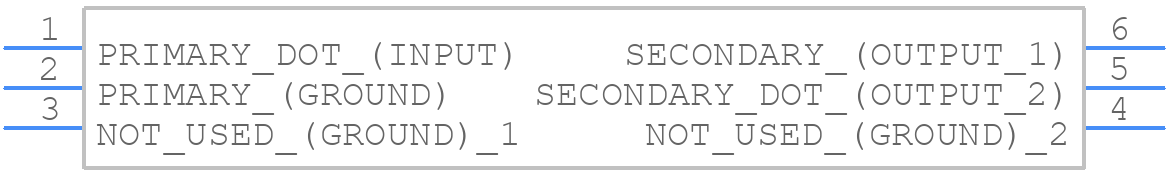

Symbol

PCB Footprints

3D Models

MABA-011118 Details

MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
MACOM recommends using a 50-ohm microstrip line with a width of 1.5 mm to 2.5 mm, and a length of λ/4 at the operating frequency. Impedance matching networks can be used to optimize performance.
The recommended operating temperature range for MABA-011118 is -40°C to 85°C. However, the device can operate up to 100°C with reduced performance and reliability.
MACOM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the device from electrostatic discharge.
MACOM recommends using a voltage regulator to provide a stable bias voltage, and a current limiting resistor to prevent overcurrent conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the MABA-011118 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MABA-, or try a keyword search, such as RF Transformers
