MAC-24+ - Mini-Circuits

Description: RF Mixer Level 7, SMT High Reliability, RF/LO Freq 300 - 2400 MHz , 40 mA , 50 mW , -65°C to 150°C

Download MAC-24+ Model

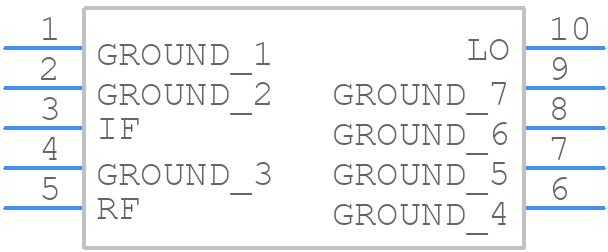

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAC-24+ - Mini-Circuits PCB footprint - Other - Other - DZ1650_2025-1.1
click to zoom
3D Models
MAC-24+ - Mini-Circuits  - 3D model - Other - DZ1650_2025-1.1
click to zoom

MAC-24+ Details

  • Manufacturer Part Number:

    MAC-24+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CASE DZ1650, 10 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.8 dB

  • Input Power-Max (CW):

    16.99 dBm

  • Operating Frequency-Max:

    2400 MHz

  • Operating Frequency-Min:

    300 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • VSWR-Max:

    6.86
