Lattice Semiconductor provides a PCB layout guide and reference design files for the MACH211-12JC. It's recommended to follow the guidelines for signal integrity, power distribution, and thermal management to ensure optimal performance.
A POR circuit can be implemented using an external resistor and capacitor connected to the VCC pin. The recommended values are R = 1 kΩ and C = 10 μF. This ensures a reliable reset signal during power-up and power-down cycles.
Clock signals should be routed as differential pairs with matched impedance and length to minimize skew and jitter. Termination resistors (e.g., 50 Ω) should be used at the clock input pins to prevent signal reflection and ensure signal integrity.
To minimize power consumption, use the lowest possible clock frequency, disable unused features and peripherals, and use the power-down mode when the device is not in use. Additionally, consider using a low-power oscillator and optimizing the PCB design for low power dissipation.
The device has a thermal pad on the bottom side, which should be connected to a thermal plane on the PCB for heat dissipation. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Follow the recommended thermal design guidelines to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MACH211-12JC Overview

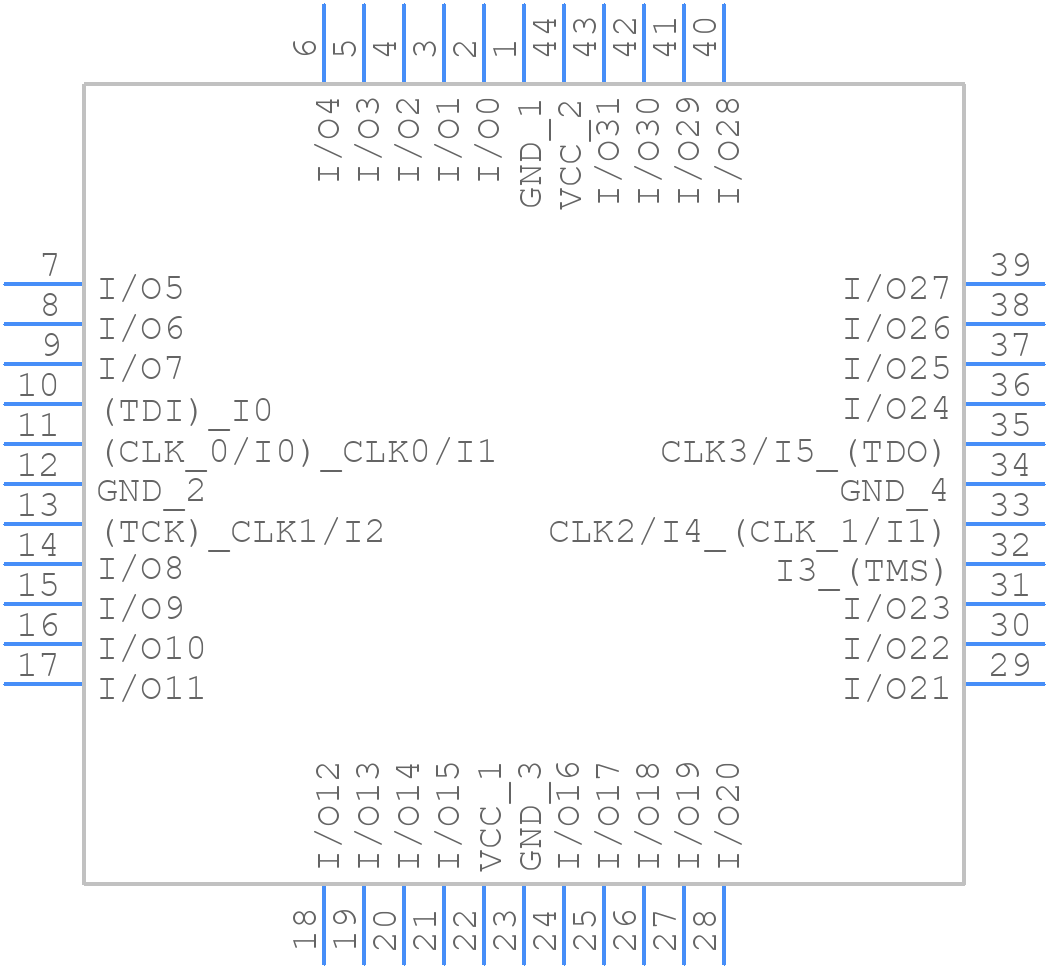

Use the download button to access the MACH211-12JC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MACH2,
or try a keyword search, such as Programmable Logic Devices
