MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50Ω system impedance is recommended, and a π-network or T-network can be used for matching.
The device has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. Ensure that the device is properly cooled, and that the thermal shutdown feature is monitored and handled in the system design.
MACOM recommends using ESD protection devices with a capacitance of 10nF or less to prevent signal degradation. The ESD protection devices should be placed as close to the MACP-010563-TR1000 as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MACP-010563-TR1000 Overview

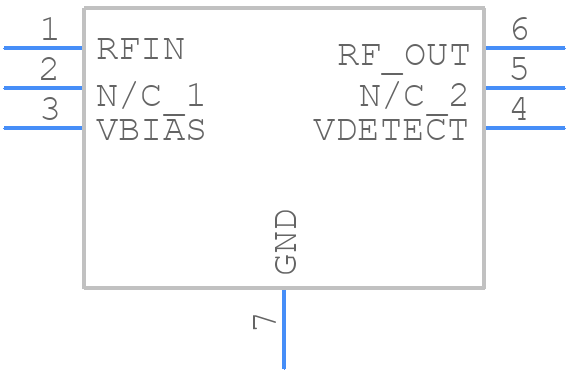

Use the download button to access the MACP-010563-TR1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MACP-,
or try a keyword search, such as RF/Microwave Detectors
