MACP-010571-TR1000 - MACOM

Description: RF Directional Coupler General Purpose 2GHz ~ 6GHz 30dBm 6-WFDFN Exposed Pad

Download MACP-010571-TR1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

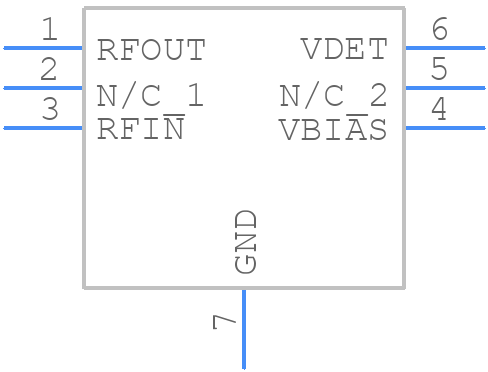

MACP-010571-TR1000 - MACOM - PCB symbol
click to zoom
PCB Footprints
MACP-010571-TR1000 - MACOM PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead DFN
click to zoom
3D Models
MACP-010571-TR1000 - MACOM - 3D model - Small Outline No-lead - 6-Lead DFN
click to zoom

MACP-010571-TR1000 Details

  • Manufacturer Part Number:

    MACP-010571-TR1000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Date Of Intro:

    2018-08-24

  • Manufacturer:

    MACOM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.06,16

  • Power Supplies:

    3.2 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Supply Current-Max:

    0.35 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.07

MACP-010571-TR1000 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • The MACP-010571-TR1000 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
  • MACOM recommends using a heat sink with a thermal conductivity of at least 1 W/m-K, and ensuring good thermal contact between the device and the heat sink to maintain a junction temperature below 125°C.
  • Use a combination of visual inspection, signal integrity analysis, and thermal imaging to identify potential issues. Check for signs of overheating, signal degradation, and power supply issues.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die. Use anti-static precautions when handling the device.
