MACOM recommends a specific PCB layout and land pattern to ensure optimal performance. It's best to consult with MACOM's application notes or contact their technical support for guidance on the recommended layout and land pattern.
The MAFC-004403-TR0500 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device.
MACOM recommends following the JEDEC J-STD-020 standard for soldering this device. It's essential to use a controlled soldering process to prevent damage to the device.
To troubleshoot issues with the MAFC-004403-TR0500, start by checking the power supply voltage, input/output impedance, and signal integrity. Consult MACOM's application notes and technical support resources for guidance on troubleshooting common issues.
The MAFC-004403-TR0500 is designed to meet high-reliability standards. The expected lifespan and reliability can be found in MACOM's reliability report, which is available upon request. Factors such as operating conditions, storage, and handling can affect the device's lifespan and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAFC-004403-TR0500 Overview

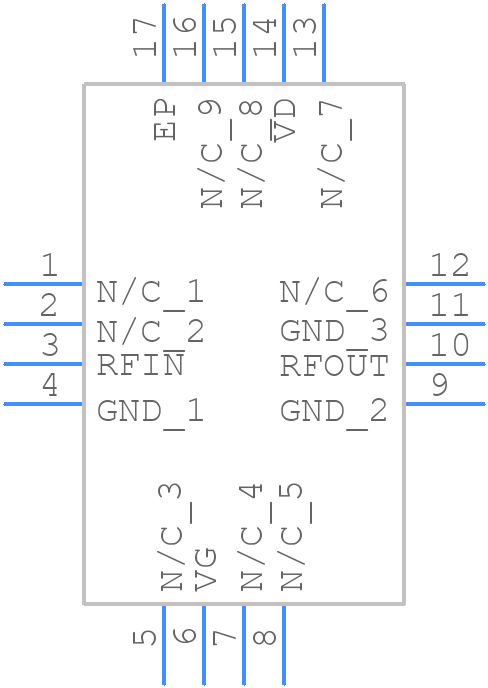

Use the download button to access the MAFC-004403-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAFC-,
or try a keyword search, such as RF/Microwave Frequency Multipliers
