MAL202116332E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Axial Leaded 3300uF 25V 20% Axial

Download MAL202116332E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL202116332E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

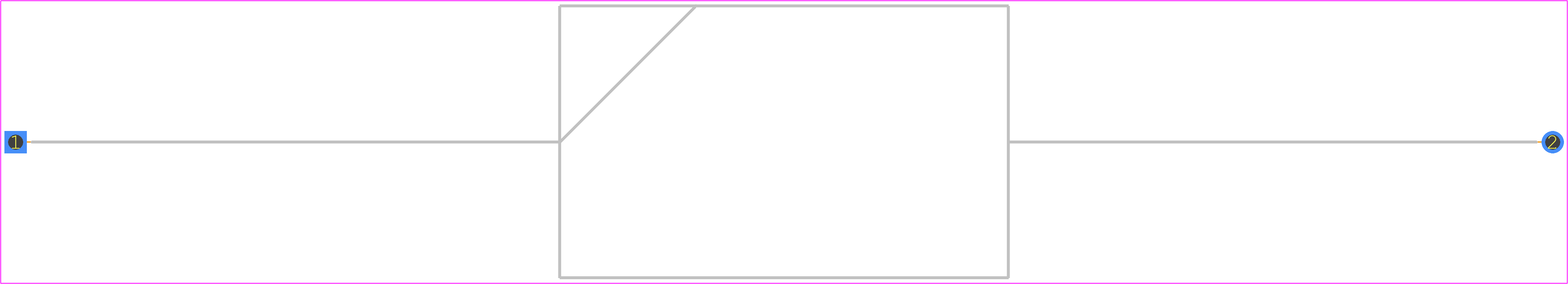

MAL202116332E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - case size 18x30
click to zoom
3D Models
MAL202116332E3 - Vishay - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - case size 18x30
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MAL202116332E3
  • Part Number MAL202116332E3
  • Manufacturer Vishay
  • Pin Count 2
  • Part Category Capacitor Polarised
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - case size 18x30
  • Released Date Feb 2, 2021
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

MAL202116332E3 Details

  • Manufacturer Part Number:

    MAL202116332E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    3300 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    99 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.169 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    1470 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.21

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

MAL202116332E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MAL202116332E3 is -40°C to +125°C.
  • Yes, the MAL202116332E3 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating voltage for MAL202116332E3 is 50V.
  • While the MAL202116332E3 is suitable for general-purpose applications, it's not recommended for high-frequency applications (>100 kHz) due to its relatively high equivalent series resistance (ESR). For high-frequency applications, consider using a low-ESR capacitor.
  • Handle the MAL202116332E3 component with care to prevent damage. Avoid touching the component's leads or body, as the oils from your skin can cause damage. Use an anti-static wrist strap or mat, and handle the component by the body, not the leads.
