MAL205058472E3 - Vishay

Description: 4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 36mOhm @ 100Hz 15000 Hrs @ 85°C

Download MAL205058472E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205058472E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

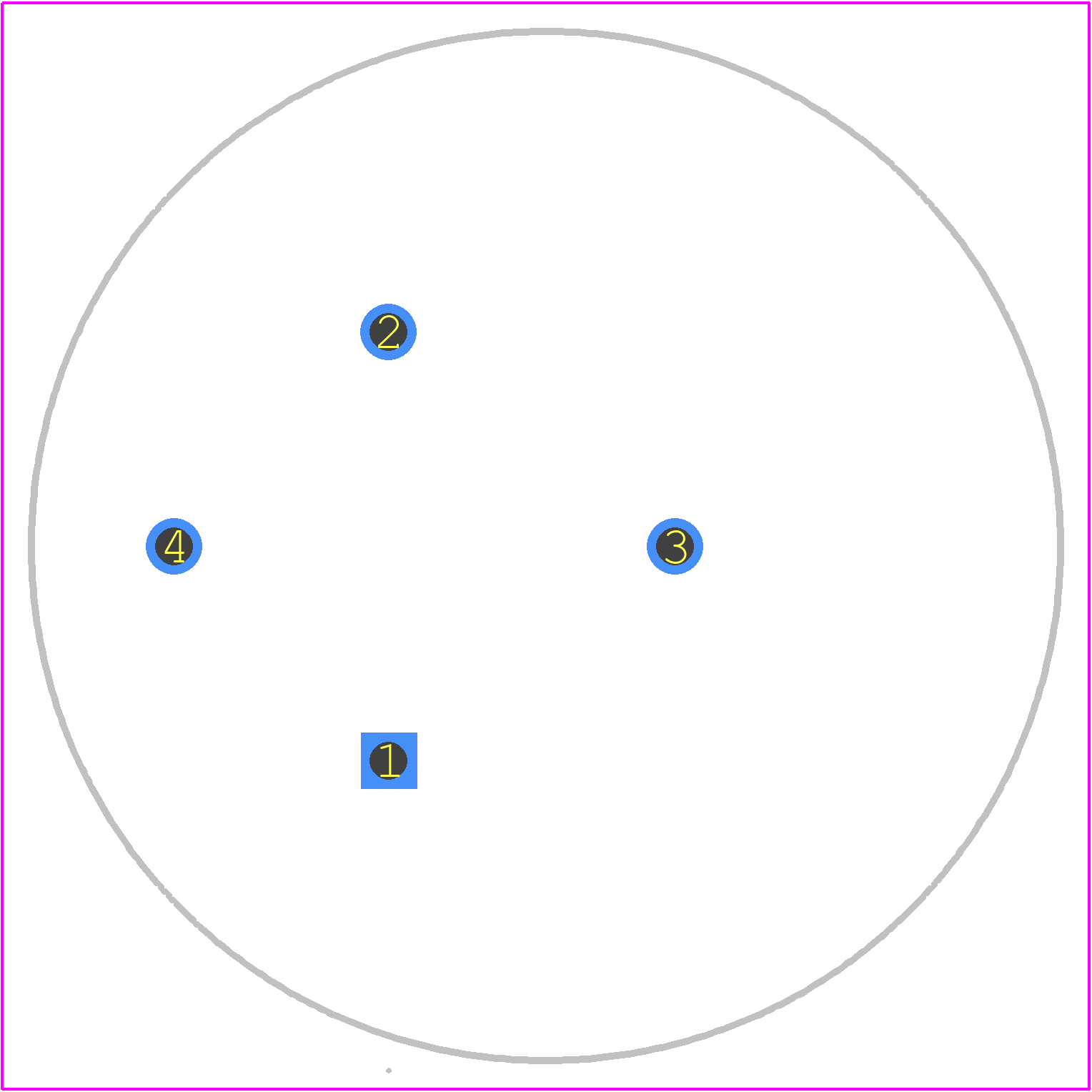

MAL205058472E3 - Vishay PCB footprint - Other - Other - MAL205058472E3-4
click to zoom
3D Models
MAL205058472E3 - Vishay - 3D model - Other - MAL205058472E3-4
click to zoom

MAL205058472E3 Details

  • Manufacturer Part Number:

    MAL205058472E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    36 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.78 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    PCB Mount

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    4400 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT
