The recommended storage condition for MAL205157103E3 is to store them in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
While MAL205157103E3 is a general-purpose capacitor, it's not recommended for high-frequency applications (>100 kHz) due to its relatively high equivalent series resistance (ESR) and inductance. For high-frequency applications, consider using capacitors specifically designed for high-frequency use.
MAL205157103E3 is a polarized capacitor, meaning it has a positive and negative leg. Ensure that the positive leg (marked with a '+' sign or a stripe) is connected to the more positive voltage potential to avoid damage or malfunction.
The maximum ripple current rating for MAL205157103E3 is not explicitly stated in the datasheet. However, as a general guideline, the ripple current rating for aluminum electrolytic capacitors is typically around 10-20% of the capacitor's rated voltage. Consult with the manufacturer or a qualified engineer for specific guidance.
While MAL205157103E3 meets the basic requirements for automotive applications, it's essential to verify that the capacitor meets the specific requirements of the automotive standard (e.g., AEC-Q200) and the vehicle manufacturer's specifications. Consult with the manufacturer or a qualified engineer for specific guidance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MAL205157103E3 Overview

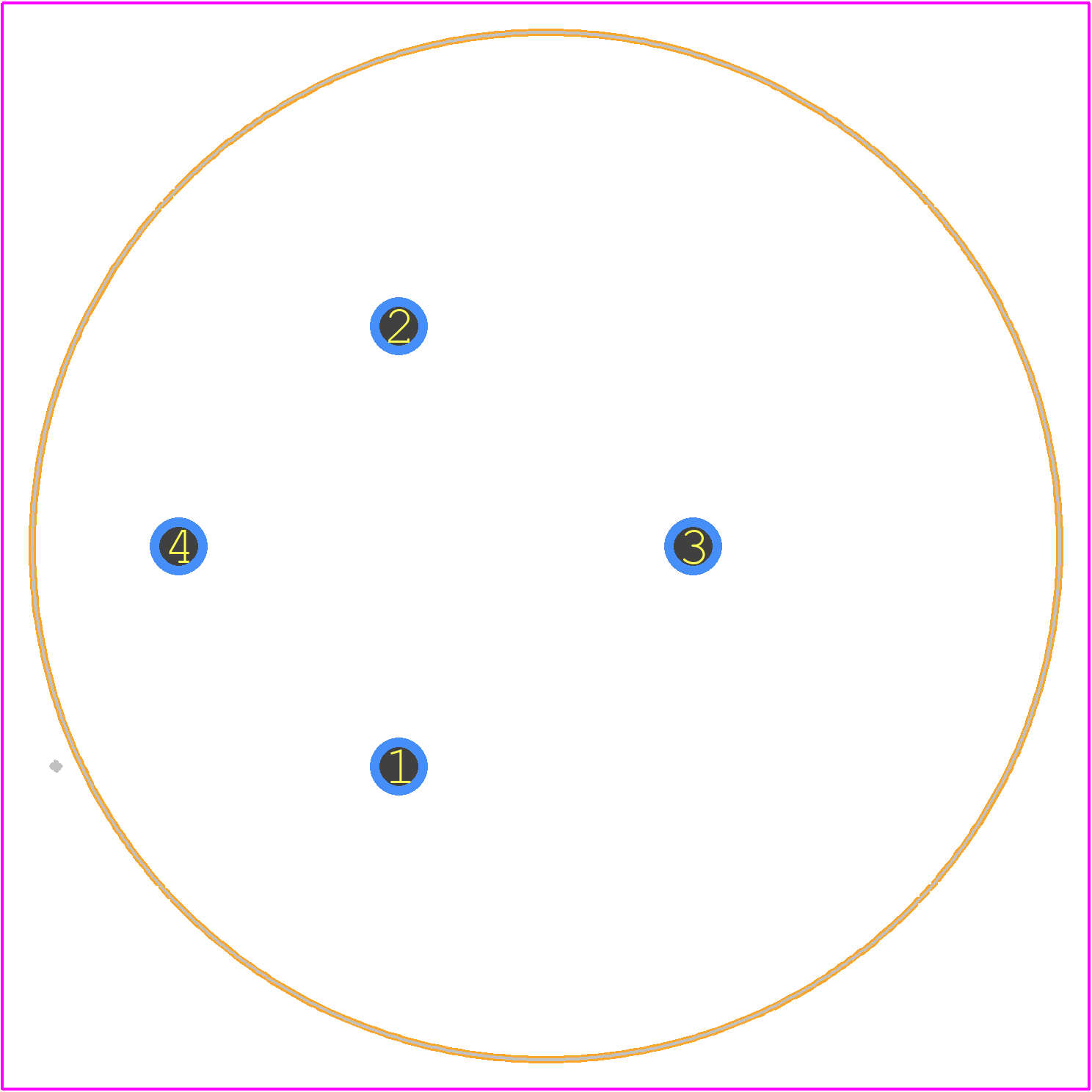

Use the download button to access the MAL205157103E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL20,
or try a keyword search, such as Ceramic Capacitors
